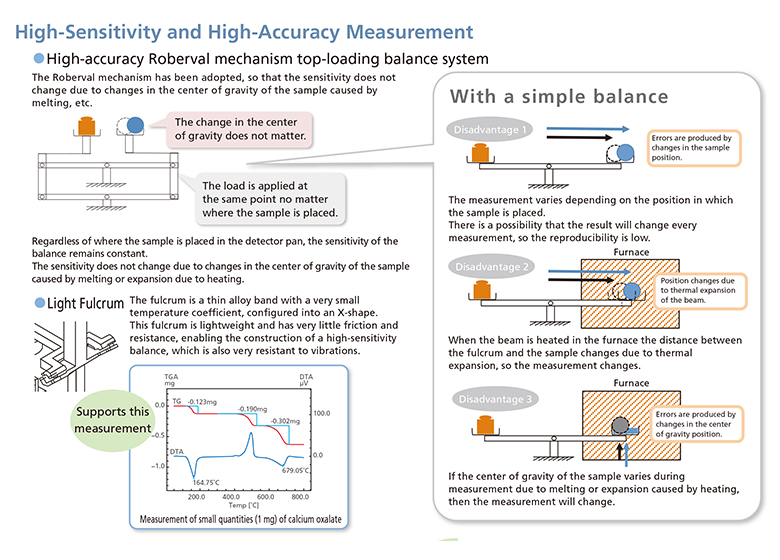

Model DTG-60 series has a unique balance mechanism (Roberval mechanism) that prevents changes in sensitivity from factors such as thermal expansion and...

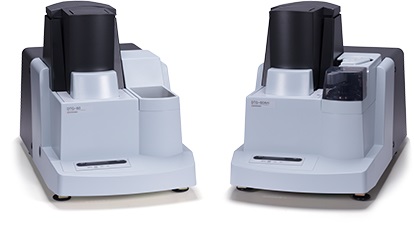

DTG-60 Series
TG/DTA Simultaneous Measuring Instrument
This instrument varies the sample temperature in accordancewith a program, and simultaneously measures the change inmass of the sample (TG) and the temperature differencebetween the sample and a standard substance (DTA). An analytical balance mechanism (Roberval mechanism) offers high reproducibility and allows worry-free operation even for measuring sample weights. Two models are available for different maximum measurement temperature requirements-the DTG-60 (max. 1,100 °C) and the DTG-60H (max. 1,500 °C). Corresponding DTG-60A and DTG-60AH models with a built-in autosampler are also available for measuring up to 24 samples automatically.
Features
-
-

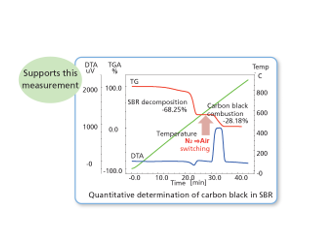

Flow channels for reaction gas provided
With TG/DTA measurement, qualitative and quantitative analysis, study of reaction mechanisms, and evaluation of... -

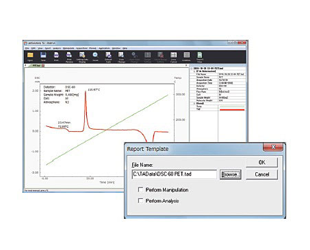

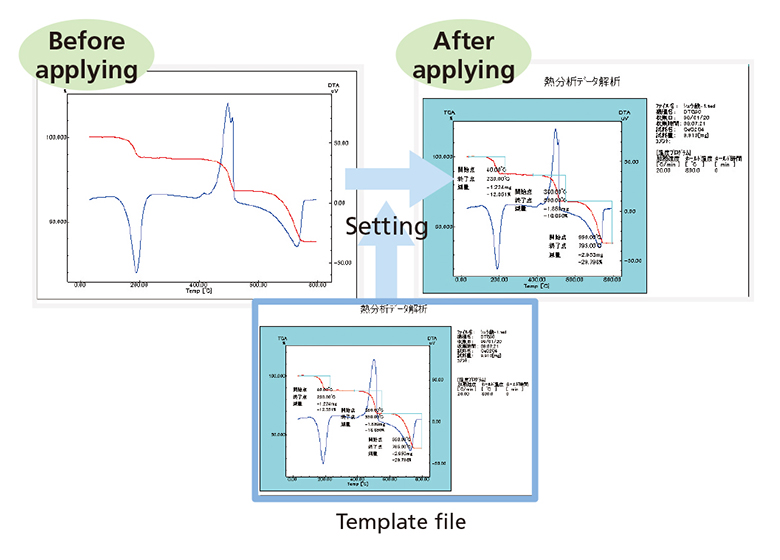

Analysis is simple with the automatic analysis function: "Template Function"
Corrections, analysis, and layout setting of reports can be carried out automatically using... -

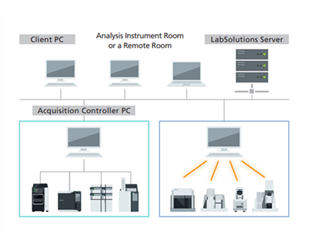

LabSolutions TA workstation software ensures all steps from measurement... -
Using DB or CS versions of LabSolutions software, all measurement data, analysis data, and analysis... -
DSC-60A Plus

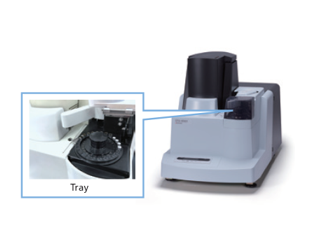

Autosampler is built into the main unit
Applications
| Applications | Creation Date |
|---|---|
|
2020-06-29 |
|
|
2014-08-05 |
|
|
2009-07-08 |
|
|
2008-07-16 |
|
|
2006-04-14 |
