DTG-60 Series - Features

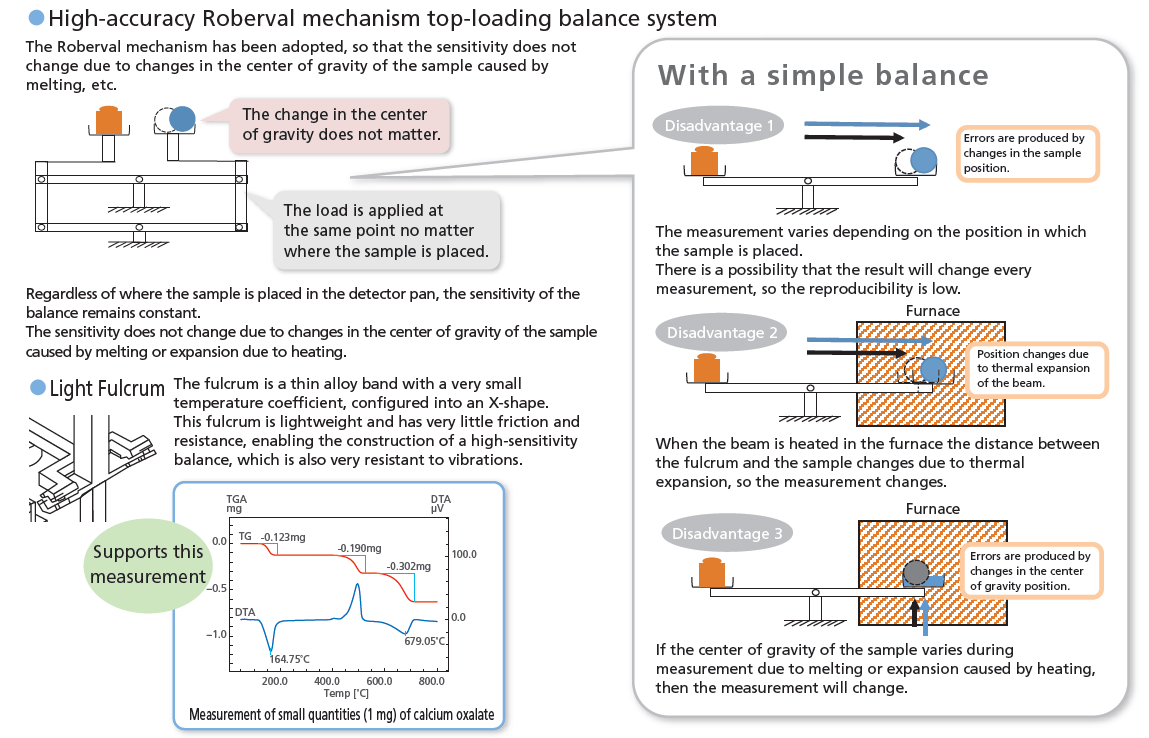

Model DTG-60 series has a unique balance mechanism (Roberval mechanism) that prevents changes in sensitivity from factors such as thermal expansion and allows high precision thermogravimetric measurements.
A Roberval balance mechanism provides highly reproducible results regardless of where the sample is placed on the detector pan, which ensures sample weights can be measured without worry. Furthermore, the fulcrum used for the balance is made from thin alloy metal strips that have tiny thermal coefficients and are crossed to form an "x" shape. This fulcrum (X-shaped fulcrum) is lightweight and has extremely low friction and resistance. Using this fulcrum configuration allows incorporating a highly sensitive balance and is even highly resistant to vibration.

Flow channels for reaction gas provided

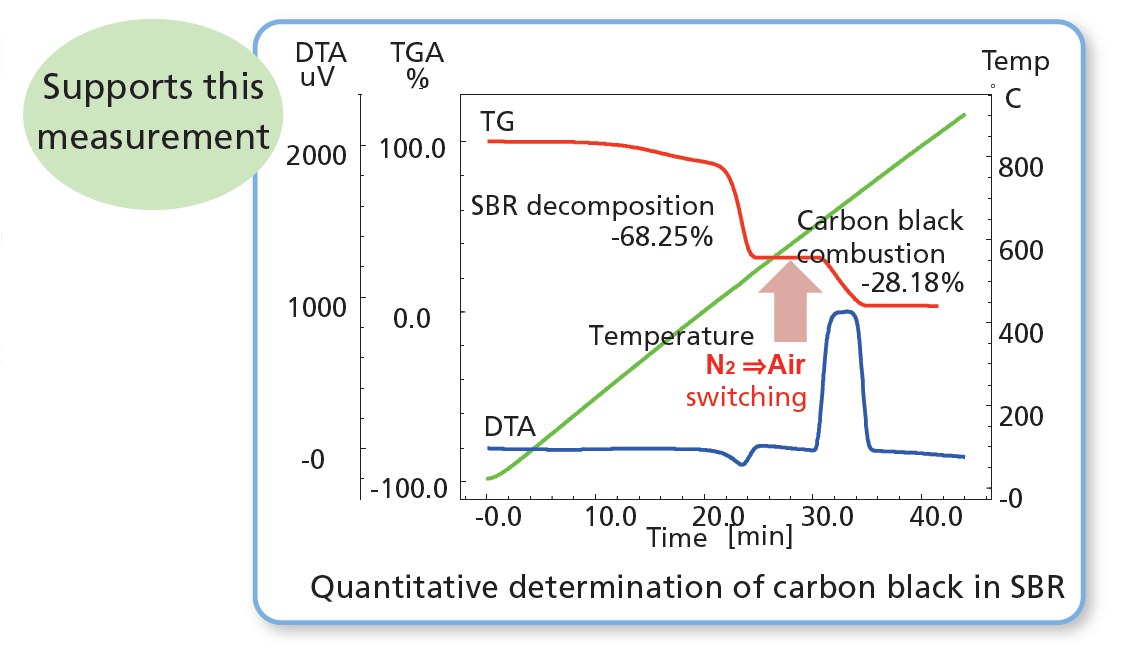

With TG/DTA measurement, qualitative and quantitative analysis, study of reaction mechanisms, and evaluation of thermal resistance can be carried out by observation of various types of reactions and interactions between the sample and special atmosphere gases.With the DTG-60 Series, various applications are supported by con-guring individual -ow channels. There is one gas inlet, so the gas can be led directly to the sample, and time is not required for the reaction.

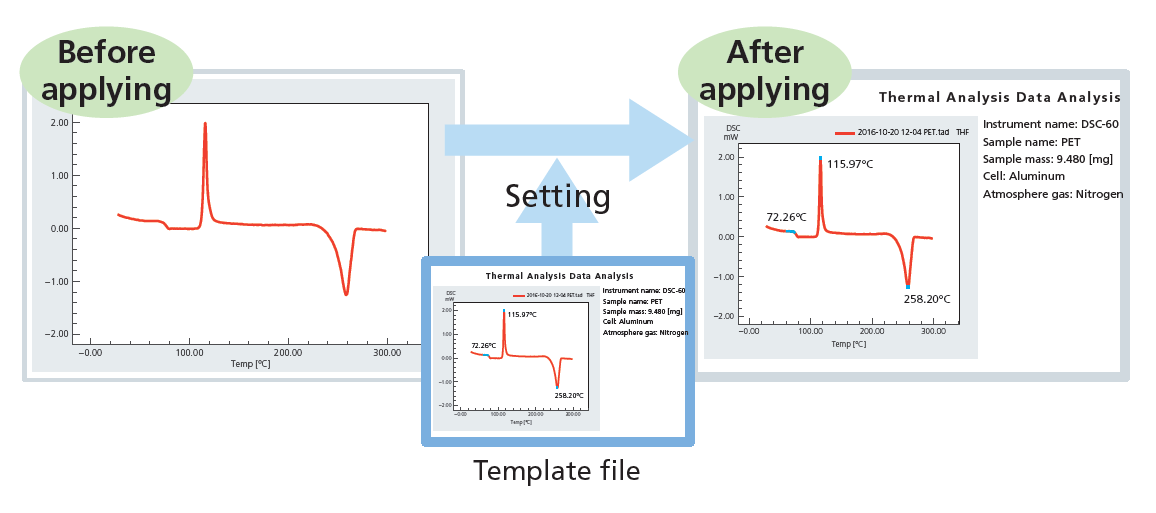

Analysis is simple with the automatic analysis function: "Template Function"

Corrections, analysis, and layout setting of reports can be carried out automatically using the unique "Template Function."
This can be used not only during analysis, but also prior to measurement. It will be automatically applied when measurement is completed, and saved.

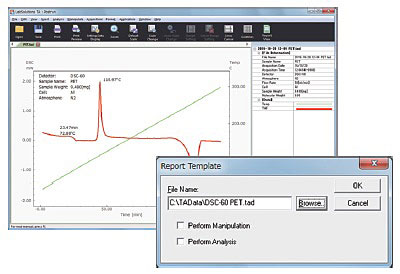

LabSolutions TA workstation software ensures all steps from measurement and data analysis to report generation can be performed smoothly using intuitive operations. It also allows the instrument operating status to be confirmed at a glance.
Optional software is also available for supporting a variety of specific measurement parameters.

• LabSolutions TA

Easy-to-use data analysis functionality improves productivity

• Automatic manipulation and automatic analysis functions in template format
• Measurement result reports are automatically prepared

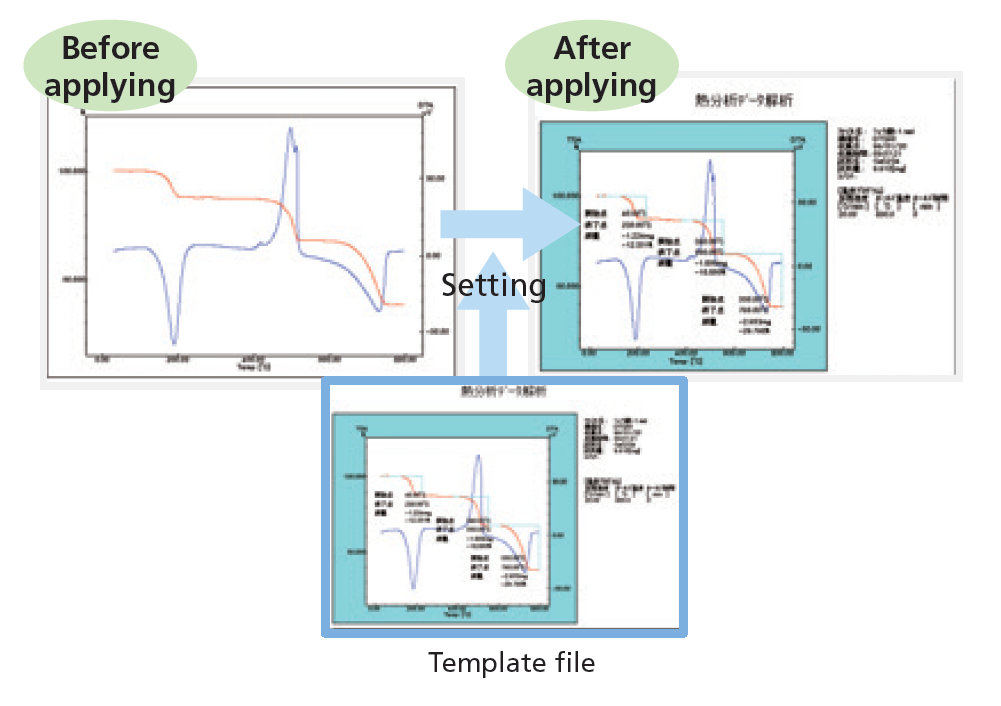

Automatic analysis using the "Template Function"

Corrections, analysis, and layout setting of reports can be carried out automatically using the unique "Template Function." This can be used not only during analysis, but also prior to measurement. It will be automatically applied when measurement is completed, and saved.

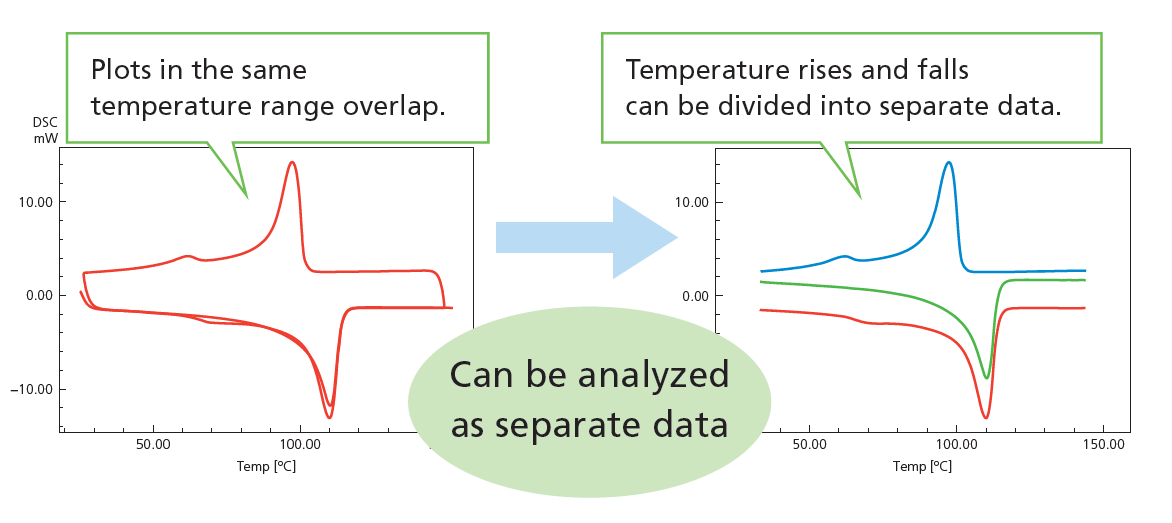

Temperature change data can be analyzed with ease

Data on repeated temperature increases and decreases can be treated as independent data using the "Analysis Range Setting Function," so analysis can be carried out simply. Using this function, data related to repeated temperature increases and decreases can be divided into separate data.

• LabSolutions TA

Using DB or CS versions of LabSolutions software, all measurement data, analysis data, and analysis and correction histories can be saved in a database.

• Prevents not saving unfavorable data.
• Saves a history of all operations.
• Data cannot be deleted or overwritten. If data is changed, the unchanged data is protected.
• Protects data from unintended overwriting or deletion and prevents errors.
