질량 측정 정확도는 기본 성능 특성입니다.
LCMS-9030
Quadrupole Time-of-Flight Liquid Chromatograph Mass Spectrometer

LCMS-9030 쿼드러폴 비행시간(Q-TOF) 질량 분석기는 세계에서 가장 빠르고 고감도의 쿼드러폴 기술과 TOF 기술을 통합합니다.
LCMS-9030은 Shimadzu의 엔지니어링 DNA, 속도 및 쉬운 성능을 통해 진정한 자신감과 용이성으로 질적 및 양적 문제를 해결할 수 있습니다.
LCMS-9030은 새로운 특허 기술을 사용하여 고해상도 및 정확한 질량을 모두 제공하며, 이는 신뢰할 수 있는 구조 분석 및 Unkown 물질 식별에 필수적인 속성입니다.

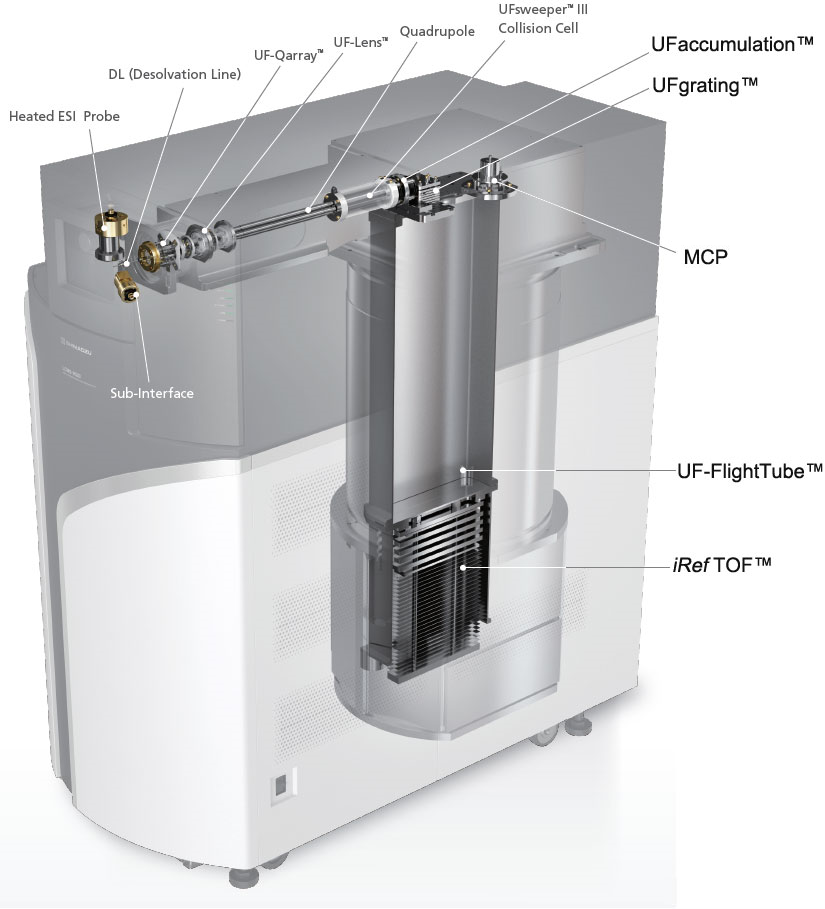

고효율 이온 가이드, 4극 및 충돌 셀은 미량 수준의 화합물 검출을 위한 높은 감도를 가능하게 합니다.
고유 UF 그레이팅 및 iRefTOF 기술은 파이팅 튜브(UF-FlightTube)로 이온의 초고속 가속과 검출기에 다시 이상적인 반사를 보장합니다. 그 결과 높은 처리량과 호환되는 고속 데이터 획득이 가능합니다.
고효율 4중극자 기술


UFaccumulation™ (Pat. US 10020181)
짧은 데이터 수집 주기와 완벽하게 동기화되는 충돌 셀의 이온 축적은 감도를 극대화합니다.

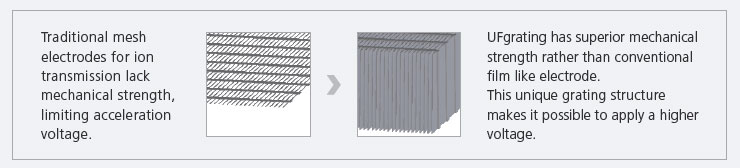

UFgrating™ (Pat. US 9048082)
Shimadzu의 세계적인 제조 능력은 이온 가속 전극을 상당한 기계적 강도로 만들 수 있게 했습니다. 이 격자는 초고속 이온 펄스에 필요한 고전압을 견딜 수 있습니다.

UF-FlightTube™ (Patent Pending)
질량 정확도는 질량 안정성이 필요합니다. Shimadzu의 온도 조절 UF-Flight Tube는 더 적은 빈도의 보정이 필요하므로 더 많은 샘플을 실행할 수 있습니다.

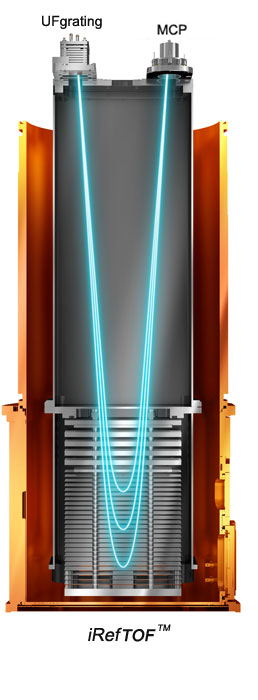

iRefTOF™ (Pat. US 8772708, 9490114)
계산적으로 이상적인 정지장이 형성되었습니다. 꼼꼼하게 제작된 플레이트 전극이 적층되어 분해능이나 감도에 영향을 주지 않고 이온을 회전시키는 반사체를 만듭니다.
슬림 & 뛰어난 디자인

단순하고 콤팩트한 디자인은 귀중한 실험실 공간을 절약합니다.
LCMS-9030은 iF DESIGN AWARD 2019을 수상하였습니다.
Press Release >>

Features
-
우수한 질량 측정 정확도
질량 측정 정확도는 기본 성능 특성입니다.
Downloads
Download the latest brochure.
Applications
Applications | Creation Date |
---|---|
2024-05-10 |
|
2024-03-25 |
|
2023-12-22 |
|
2023-09-20 |
|
2023-03-30 |
Movies
-
LCMS-9030 Quadrupole Time-of-Flight Liquid Chromatograph Mass Spectrometer
The LCMS-9030 quadrupole time-of-flight (Q-TOF) mass spectrometer integrates the world' s fastest and most sensitive quadrupole technology with TOF architecture. A product of Shimadzu's engineering DNA, speed and effortless performance enable the LCMS-9030 to address qualitative and quantitative challenges with genuine confidence and ease.
