Probes
Last update: January 26, 2021
| Name | P/N | Appearance | Qty | Remarks | Applicable models |
|---|---|---|---|---|---|
| Ferrule, 1.6F |
228-16000-17
|
|
3 | Made of stainless steel |
2010A 2010EV 2010 |
| Ferrule, 1.6F |
228-16000-19
|
|
10 | Made of stainless steel |
2010A 2010EV 2010 |
| Corona needle |
225-25024-13
|
|
1 |
8080 |
|
| APCI capillary |
225-25024-11
|
|
1 |
8080 |
|
| APCI cap |
225-25024-10
|
|
1 |
8080 |
|
| Spring |
225-25024-07
|
|
1 |
8080 |
|
| ESI capillary |
225-25024-06
|
|
1 |
8080 |
|
| Nut |
225-25024-05
|
|
1 |
8080 |
|
| O-ring 2 |
225-25024-04
|
|
1 |
8080 |
|
| O-ring |
225-25024-03
|
|
1 |
8080 |
| Name | P/N | Appearance | Qty | Remarks | Applicable model Links | Applicable models |
|---|---|---|---|---|---|---|
| Ferrule, 1.6F PEEK |
228-45407-91
|
|
1 | Made of PEEK resin |
2010A 2010EV 2010 |
|
| Ferrule, 1.6F PEEK |
228-31638-84
|
|
5 | Made of PEEK resin |
2010A 2010EV 2010 |
|
| PEEL tube |
228-32999-01
|
|
1 |
LCMS-9030 9030 8060 8050 8030 8040 2020 |
||
| ETFE tube 1.6×0.5 |
228-18495-04
|
|
1 | For glass capillaries |
2010 |
|
| Capillary assembly |
225-14948-91
|
|
1 |
LCMS-9030 9030 8060 8050 8030 8040 2020 |
||

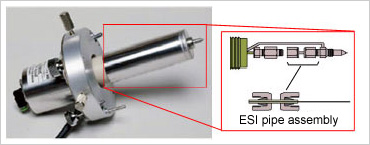

| ESI pipe assembly |
225-10737-91
|
|
1 | Metal capillary → Reference Diagram |
2010A 2010EV |
|
| ESI pipe assembly |
225-10737-93
|
|
1 | High-durability metal capillary Use this when the sample concentration is high such as for a contaminated sample or a composite material check. |
2010A 2010EV |
|

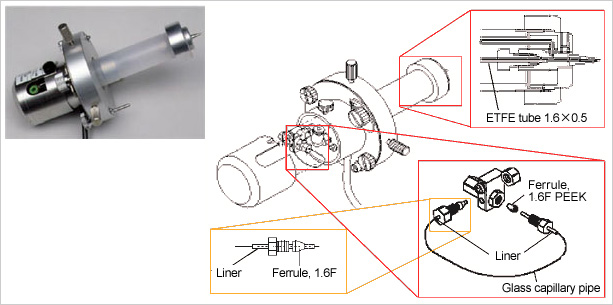

| Glass capillary pipe |
225-03982
|
|
1 | Glass capillary → Reference Diagram |
2010 |
|
| Liner |
225-03559
|
|
5 | For securing the glass capillary |
2010 |
Note: The LCMS-2010 normally uses an ESI probe consisting of a glass capillary. If the probe has been upgraded to a metal capillary construction, use it.
| Name | P/N | Appearance | Qty | Applicable model Links | Applicable models |
|---|---|---|---|---|---|

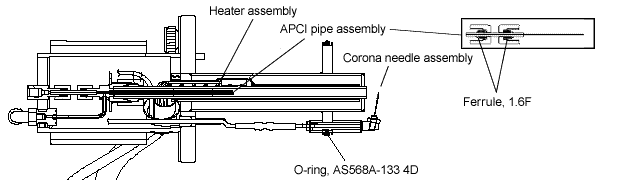

| Corona needle assembly |
225-15877-92
|
|
1 |
9030 8060 8050 8030 8040 2020 |
|
| Corona needle assembly |
225-03961-91
|
|
1 |
2010A 2010EV 2010 |
|
| APCI pipe assembly |
225-15845-91
|
|
1 |
9030 8060 8050 8030 8040 2020 |
|
| APCI pipe assembly |
225-03983-93
|
|
1 |
2010A 2010EV 2010 |
|
| Heater assembly |
225-15619-41
|
|
1 |
8060 8050 8030 8040 2020 |
|
| Heater assembly |
225-06475-91
|
|
1 |
2010A 2010EV 2010 |
|
| Heater assembly |
225-04936-91
|
|
1 | ||
| O-ring, AS568A-133 4D |
036-15551-33
|
|
1 |
2010A 2010EV 2010 |
| Name | P/N | Appearance | Qty | Remarks | Applicable models |
|---|---|---|---|---|---|

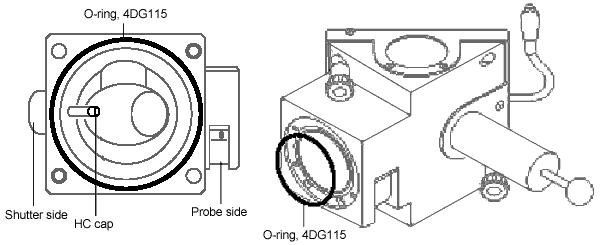

| HC cap |
225-03917
|
|
1 | Shutter rubber |
2010EV 2010A 2010 |
| O-ring, 4DG115 |
036-12521
|
|
1 | Connecting part between the probe holder and the interface section (CDL side) |
2010EV 2010A 2010 |
| O-ring, 4DG55 |
036-12507
|
|
1 | Connecting part between the probe holder and the probe |
2010EV 2010A 2010 |
