LCMS-2020
High-Performance [Liquid Chromatograph Mass Spectrometer

Ultra high-speed mass spectrometer compatible for the first time with ultra high-speed liquid chromatography
UFLC Quality - Speed is Power.

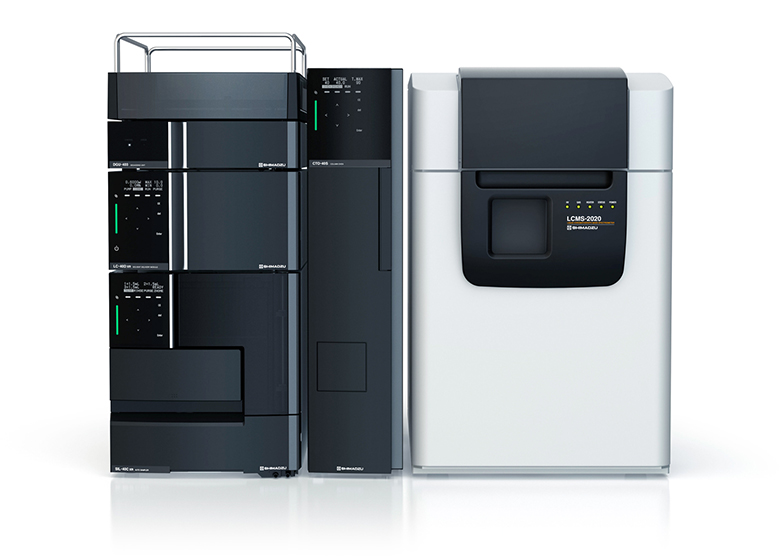

LCMS-2020 is optimized for the Prominence UFLC/UFLCXR Ultra Fast Liquid Chromatograph. Novel patent-pending technologies offer significantly enhanced scan speed and positive-negative ion polarity switching time, which are essential for UFLC, and simultaneously boost sensitivity. The instrument combines the excellent compound selectivity that is a feature of the mass spectrometer with significantly enhanced total productivity – from method development to analysis. The LCMS-2020 plays a useful role in a range of fields, including the synthesis of compounds in the pharmaceutical and chemical industries.
Features
-

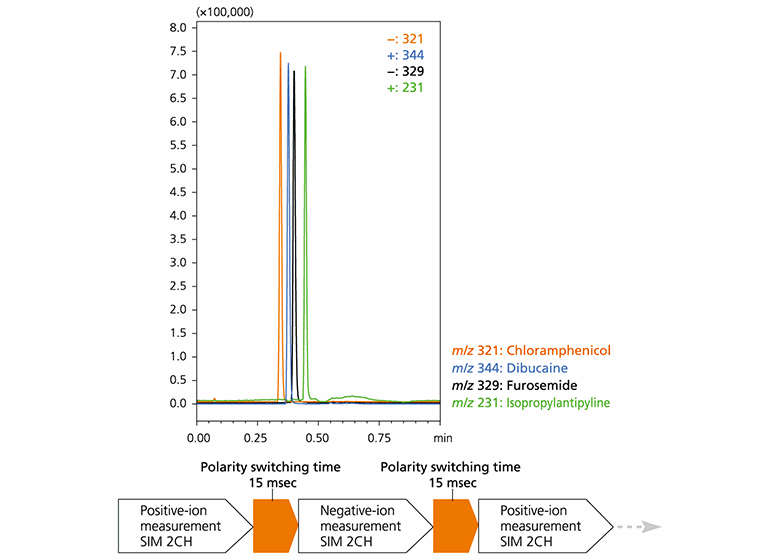

To detect both positive and negative ions, analysis is performed while switching between the positive and negative ionization modes. The LCMS-2020 adopts patented high-voltage power supply technology (Patent: US7855355) to achieve an ultra-fast polarity switching time of just 15 msec.
-

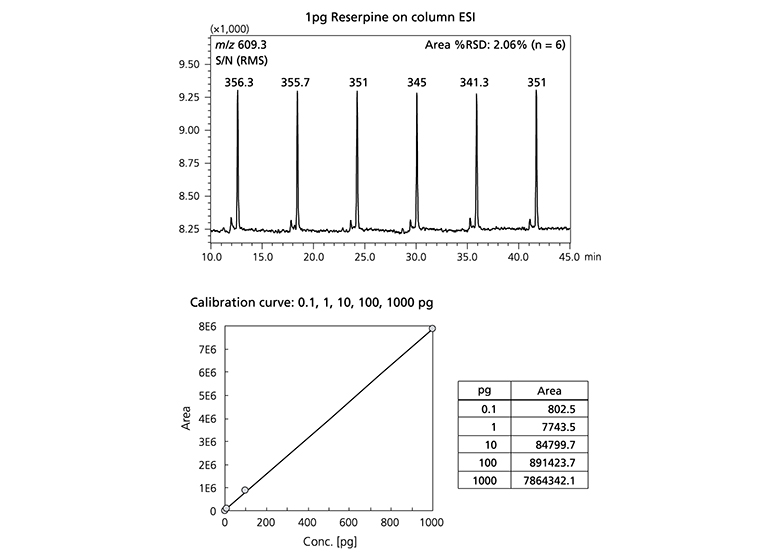

Superior sensitivity, repeatability, and linearity are achieved, thanks to the newly developed Qarray® optics.
-

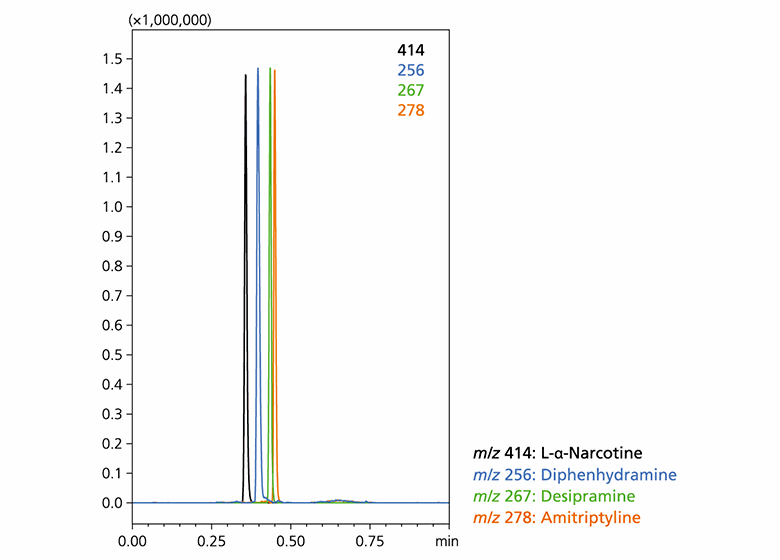

In MS scanning, a range of mass to charge ratios are determined in successive 0.1 m/z steps. This is controlled by applying a rapidly changing voltage to the quadrupole (quadrupole rods). By adopting new technology (patent pending), ...
-
Applications
Applications | Creation Date |
---|---|
2020-04-30 |
|
2016-06-01 |
|
2015-10-26 |
|
2015-08-27 |
|
2015-08-25 |
