Co-Sense for Impurities
Liquid Chromatograph with online Sample Preparation

The FDA draft guidance, "Genotoxic and Carcinogenic Impurities in Drug Substances and Products: Recommended Approaches" prescribes permitted limits for genotoxic impurities in drug substances. These impurities demand more sensitive trace-level analysis than normal impurities. Generally, mass spectrometry methods, such as GC/MS or LC/MS, are used for the high-sensitivity analysis of impurities. However, there is increasing demand for the establishment of a high-sensitivity quantitation method using an absorbance or other conventional detector that is easy to operate and can easily apply existing LC analysis conditions.
Features
-
Impurity intake restricted to 1.5 µg/day max. when taking a drug over a long period (12 months or more)
Example: For a 30 mg daily... -

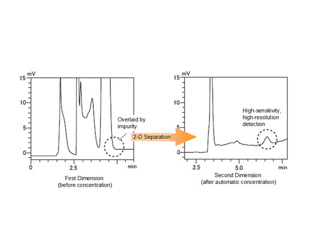

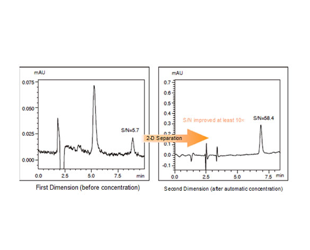

The Co-Sense for Impurities System achieves approximately 10 to 20 times higher sensitivity than 1-D separation only by...
-

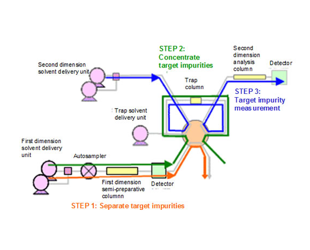

Using a 1-D and 2-D column with different retention characteristics, or using different mobile phase compositions, permits reliable separation and...
-

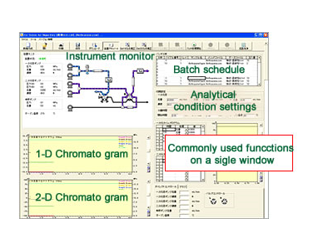

Significant knowledge and experience are generally required to set the analytical conditions and clean the flow lines of a 2-D separation system. However...
Applications
Applications | Creation Date |
---|---|
2012-09-18 |
