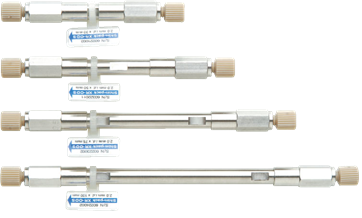

Shim-pack XR Series
HPLC Column

Shim-pack XR Series컬럼은 2.2μm 입자 크기로 되어있어 분리 효율성과 압력 사이의 균형을 통해 분석합니다.

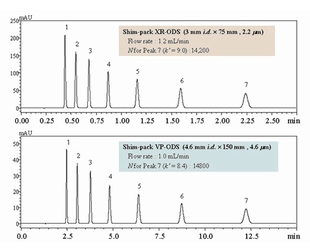

XR Series 컬럼의 분리도는 5μm 입자 크기의 Shim-pack VP-ODS 컬럼과 동등하지만 분석 시간을 크게 단축합니다.
많은 분석 조건에서 컬럼에 가해지는 압력은 35MPa를 초과하지 않습니다.
결과적으로 기존 기기에서 초고속 분석을 안정적으로 수행할 수 있습니다.
Features
-
Shim-pack XR-ODS컬럼은 Shim-pack VP-ODS컬럼의 기존 분석에서 간단하게 전환 가능합니다.
-

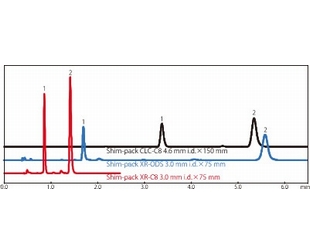

고객은 분석에 이상적인 컬럼을 선택할 수 있습니다. Shim-pack XR Series 제품군에는 C18이 결합되어있는 Shim-pack XR-ODS 외에도 C8가 결합되어 있는 Shim-pack XR-C8이 포함됩니다.
-
Shim-pack XR-ODS II/III는 Shim-pack XR 시리즈 컬럼과 동일한 2.2μm 입자 크기를 사용하지만, 60/100MPa 허용 압력이 더 높아 물/메탄올 이동상을 사용하는 긴 컬럼에서 높은 분리도로 빠른 분석을 달성합니다.
-
Downloads
Download the latest brochure.
