Shim-pack IC Series
HPLC Column
이온 크로마토그래피(IC)는 무기, 유기 이온의 분석에 사용됩니다.
Suppressor IC와 Non-suppressor IC로 분류됩니다. Non-suppressor IC는 conductivity 검출기와 결합된 기존 HPLC 시스템으로 구성되며, Suppressor IC는 별도의 Suppressor가 필요합니다.
Non-Suppressor Type | Anion Analysis | Shim-pack IC-A1 | 무기 음이온들을 분석 가능. 넓은 pH 범위의 산 혹은 염기 이동상과 호환. |
---|---|---|---|
Shim-pack IC-A3 | 약산 이동상이 사용될 때, 무기 음이온 및 산 이온의 분석에 뛰어난 분리 효율성을 제공. | ||
Cation Analysis | Shim-pack IC-C1 | 양이온을 분석 (alkaline metal ions, alkali earth metal ions, transition metal ions, rare earth metal ions, alkyl amines) | |
Shim-pack IC-C4 | alkali metal ion과 alkaline earth metal ion 의 동시분석 가능. Sodium, ammonium ion 의 분리 극대화. |
Suppressor Type | Anion Analysis | Shim-pack IC-SA2 | 이온 분석(fluoride ions, chloride ions, nitrite ions, bromide ions, nitrate ions, phosphate ions, sulfuric acid ions) |
---|---|---|---|
Shim-pack IC-SA3 | 이온 분석할때, 높은 분리도의 성능 제공(fluoride ions, chloride ions, nitrous acid ions, bromide ions, nitric acid ions, phosphate ions, sulfuric acid ions, chlorous acid ions, chloric acid ions, bromic acid ions) | ||
Cation Analysis | Shim-pack IC-SC1 | Non-suppressor IC에서도 사용가능. 수질 분석에 적합. |
제품 정보
Column | Stationary phase | Particle Size (µm) | Dimensions (I.D. x Length, mm) | P/N | Guard Column |
---|---|---|---|---|---|
Shim-pack IC-A1 | Quaternary ammonium group | 12.5 | 4.6 x 100 | 228-17733-91 | 228-17734-91 |
Shim-pack IC-A3 | Quaternary ammonium group | 5 | 4.6 x 150 | 228-31076-91 | 228-31076-92 |
Shim-pack IC-A3 (S) *1 | Quaternary ammonium group | 5 | 2.0 x 150 | 228-33366-91 | |
Shim-pack IC-C1 *2 | Sulfone group | 10 | 5.0 x 150 | 228-17737-91 | 228-17738-91 |
Shim-pack IC-C1 PEEK | Sulfone group | 10 | 4.6 x 100 | 228-33497-91 | 228-33497-92 |
Shim-pack IC-C4 | Carboxyl group | 7 | 4.6 x 150 | 228-41616-91 | 228-59900-91 (Cartridge + Holder) |
228-59900-92 (Cartridge only) |
|||||
Shim-pack IC-SA2 | Quaternary ammonium group | / | 4.0 x 250 | 228-38983-91 | 228-38983-92 |
Shim-pack IC-SA3 | Quaternary ammonium group | / | 4.0 x 250 | 228-41600-91 | 228-41600-92 |
Shim-pack IC-SC1 | Quaternary ammonium group | 6 | 4.6 x 150 | 228-36605-91 | 228-36605-92 |
*1 Shim-pack IC(S) 시리즈는 semi-micro LC용입니다. PIA-1000이 필요합니다.
*2 Shim-pack IC-C1으로 alkali metal ion을 분석하는 동안 액체 펌프와 시료 주입기 사이에 설치된 Pre-column Shim-pack IC-PC1(P/N:228-17744-91)을 사용할 것을 권장합니다.
Features
-

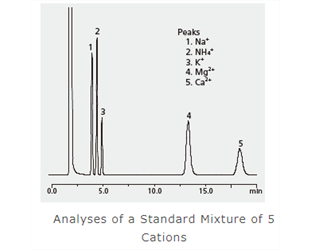

Na+의 피크 형태를 개선하여 Na+ 및 NH4+의 높은 분리도를 달성했습니다.
-

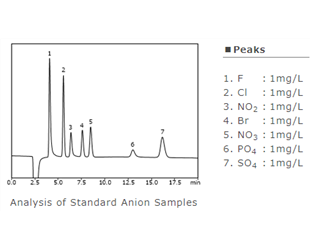

Shim-pack IC-SA2는 Shimadzu 이온 크로마토그래프 HIC-SP(suppressor type)의 음이온 분석을 위해 개발되었습니다.
-
