Shim-pack GISS Series - Features
HPLC Column Solutions
극도의 비활성도 및 높은 내구성으로 고속 분석

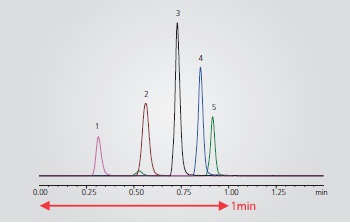

Analysis Examples
β-blocker
■Peaks (100 μg/L each)
| Q1 > Q3 | |
| 1. Acebutolol | 337.10 > 116.05 (+) |
| 2. Atenolol | 267.25 > 145.00 (+) |
| 3. Labetalol | 329.00 > 161.95 (+) |
| 4. Nadolol | 310.05 > 254.00 (+) |
| 5. Pindolol | 249.80 > 116.00 (+) |
■Conditions
| Column | Shim-pack GISS C18 (50 mmL x 2.1 mmI.D., 1.9 μm) |
| Eluent | A) 10 mM Ammonium Formate in H2O B) 10 mM Ammonium Formate in CH3OH A/B = 70/30 ‒ 0.3min - 40/60 ‒ 0.5min - 0/100 ‒ 0.1min ‒ 0/100 ‒ 0.01min -70/30 ‒ 0.5min - 70/30, v/v |
| Flow Rate | 0.6 mL/min |
| Col. Temp. | 40 °C |
| Detection | LC/MS/MS（ESI, Positive, Negative MRM） |
상세설명
| Shim-pack GISS C18 | |
| Bonded Phase | Octadecyl Groups |
| Analysis Mode | Reversed Phase |
| Features |
High-speed analysis with ultra-high inertness and high durability |
| Particle Size (μm) | 1.9, 3, 5 |
| Pore Size (nm) | 20 |
|
Surface Area (m2/g)
|
200 |
| Carbon Loading (%) | 9 |
| End Cap | ○ |
| pH Range | 1-10 |
| USP Code | L1 |
