Shim-pack Bio IEX
HPLC Column
Ion Exchange Chromatography Columns
Shim-pack Bio IEX 컬럼은 porous(Q, SP 컬럼) 및 non-porous(Q-NP, SP-NP 컬럼) hydrophilic polymers를 기반으로 Q (quaternary ammonium) 및 SP (sulfopropyl) ligand로 이루어져 있습니다.
porous 입자는 뛰어난 binding capacity와 탁월한 고효율성을 제공하며 non-porous 입자는 높은 효율과 뛰어난 분리도를 제공합니다.

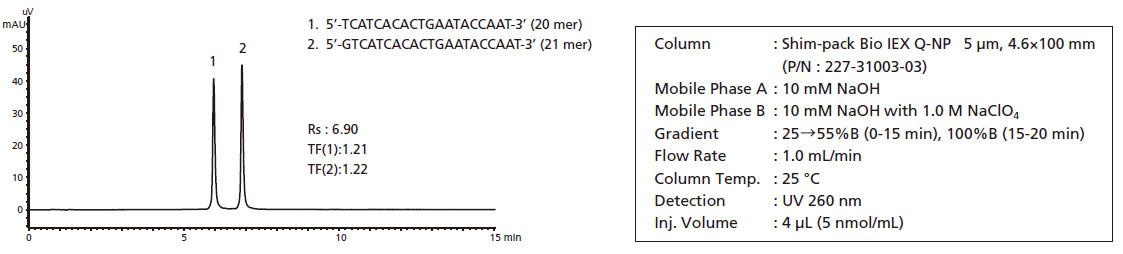

Shim-pack BIO IEX Q-NP컬럼을 사용하여 합성된 Oligonucleotide(Single Strand DNA) 분석
| Shim-pack Bio IEX | Q-NP | SP-NP | Q | SP |
|---|---|---|---|---|
| Particle | hydrophilic non-porous polymer | hydrophilic non-porous polymer | ||
| Particle Size | 3 μm，5 μm | 5 μm | ||
| Ligand | -CH2N+(CH3)3 | -(CH2)3SO3- | -CH2N+(CH3)3 | -(CH2)3SO3- |
| pH Range | 2 - 12 | |||
