SFC Columns Features
Achieve high speed and high performance
Shim-pack UC series offers various stationary phases suitable for the mobile phase of high diffusion and low-viscosity liquid carbon dioxide.
Analysis time can be reduced at a high flow rate without impairing the separation performance. In addition, analysis speed, which is limited in HPLC, can be increased.
Wide range of stationary phases meets diverse needs
Shim-pack UC series was designed with eight types of stationary phases and sizes to meet diverse research and development needs.
High durability and stable reproducibility
Shim-pack UC series achieves high inertness for improved analysis precision and increased column durability. Its uniform silica surface and stable chemical modification also ensure high analysis reproducibility.
Specifications
| Shim-pack | UC RP | UC GIS II | UC Phenyl | UC CN |
|---|---|---|---|---|
| Bonded Phase | Octadecyl Groups + Polar Functional Group | Octadecyl Groups | Phenyl Groups | Cyanopropryl Groups |
| Particle Size (μm) | 3, 5 | 3, 5 | 3, 5 | 3, 5 |
| Max. Operating Pressure (MPa) | 20 | 20 | 20 | 20 |
| Pore Size (nm) | 10 | 10 | 10 | 10 |
| Surface Area (m2/g) | 450 | 450 | 450 | 450 |
| Carbon Loading | 9 % | 11 % | 9.5 % | 14 % |
| Pressure Tolerance (MPa) | 50 (3 µm), 30 (5 µm, I.D. 2.1-10mm), 23 (5 µm, I.D. 20-28mm) | |||
| Pore Volume (mL/g) | 1.05 | 1.05 | 1.05 | 1.05 |
| End-capping | - | √ | - | - |
| pH Range | 2 - 7.5 | 2 - 7.5 | 2 - 7.5 | 2 - 7.5 |
| USP Code | L1 | L1 | L11 | L10 |
| Shim-pack | UC Diol | UC Sil | UC Amide | UC NH2 |
|---|---|---|---|---|
| Bonded Phase | Diol Group | - | Carbamoyl Groups | Aminopropyl Groups |
| Particle Size (μm) | 3, 5 | 3, 5 | 3, 5 | 3, 5 |
| Max. Operating Pressure (MPa) | 20 | 20 | 20 | 20 |
| Pore Size (nm) | 10 | 10 | 10 | 10 |
| Surface Area (m2/g) | 450 | 450 | 450 | 450 |
| Carbon Loading | 20 % | - | 18 % | 8 % |
| Pressure Tolerance (MPa) | 50 (3 µm), 30 (5 µm, I.D. 2.1-10mm), 23 (5 µm, I.D. 20-28mm) | |||
| Pore Volume (mL/g) | 1.05 | 1.05 | 1.05 | 1.05 |
| End-capping | - | - | - | - |
| pH Range | 2 - 7.5 | 2 - 7.5 | 2 - 7.5 | 2 - 7.5 |
| USP Code | L20 | L3 | - | L8 |
Analysis Examples Tocopherol isomers

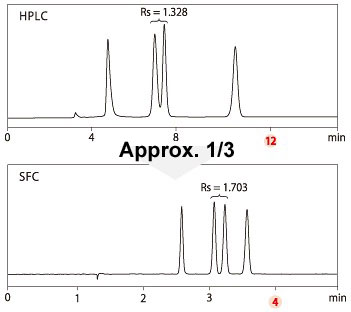

Comparison of retention and resolution of tocopherol isomers between LC condition and SFC ones
Isomers and structurally similar compounds that are difficult to separate can be analyzed by Nexera UC and Shim-pack UC series at high speed.
In this example, four kinds of tocopherol isomers were analyzed by Nexera UC and Shim-pack UC Sil.
As indicated on the right, analysis time was reduced to one-third the time achieved with conventional HPLC method while resolution was improved.
Analysis Examples Phospholipid classes

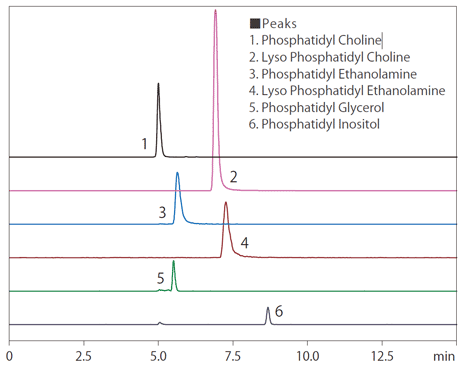

Analysis of phospholipid classes
The example on the left shows the result of the analysis of phospholipid classes using Shim-pack UC Diol with Nexera UC.
The ODS-based Shim-pack UC GIS II can also be used to analyze molecular species of phospholipids with the same modifiers.
Nexera UC and Shim-pack UC series are ideal for analyzing complex samples.

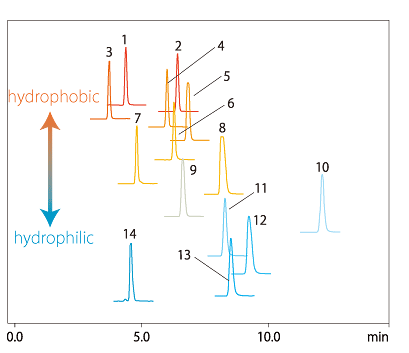

Analysis Examples Multiple pesticides with wide polarity range
Simultaneous analysis of multiple pesticides with a wide polarity range from hydrophobic to hydrophilic ones has been achieved using the Nexera UC using Shim-pack UC RP.
Shim-pack UC RP contains a polar functional group embedded between the silica surface and the C18 group. This allows the column to analyze a wide range of components from hydrophobic to hydrophilic ones.
Simultaneous analysis of multiple components can now be performed more efficiently using the Nexera UC and Shim-pack UC series.
| No. | components | logP |
|---|---|---|
| 1 | Carbofuran | 7.4 |
| 2 | Ethofenprox | 6.9 |
| 3 | Fenpropathrin | 6.0 |
| 4 | Pyriproxyfen | 5.0 |
| 5 | Pyraclostrobin | 4.0 |
| 6 | Linuron | 3.0 |
| 7 | Aminocarb | 1.9 |
| 8 | Ethoxysulfuron | 1.0 |
| 9 | Halosulfuron methyl | 0.0 |
| 10 | Bentazone | -0.5 |
| 11 | Chlorsulfuron | -1.0 |
| 12 | Rimsulfuron | -1.5 |
| 13 | Nicosulfuron | -1.8 |
| 14 | Vamidothion | -4.2 |
Analysis of pesticides
