Suitable for thermally labile compounds, no direct heat applied.

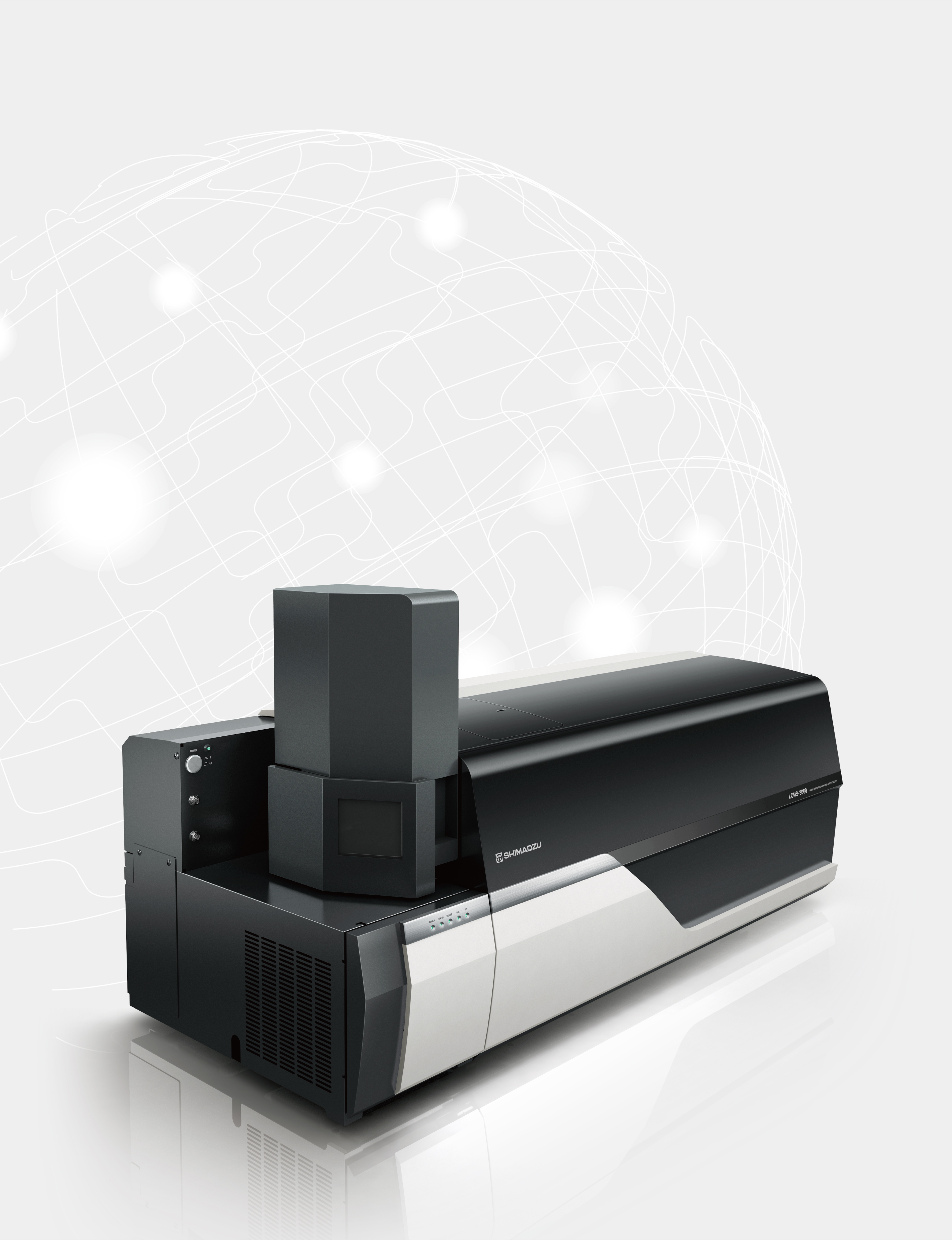

DPiMS-8060
Kit for Direct Probe Ionization Mass Spectrometer

A triple quadrupole mass spectrometer with a DPiMS-8060 kit installed can acquire trace sample quantities using a probe and analyze component masses in the MS unit. The kit can also be used with an LCMS system, by installing it in an LCMS-8045/8050/8060 system for easy switching between PESI TQ and ESI units. Its ability to quickly detect drugs or metabolites in blood or tissue samples with only extremely simple pretreatment makes it ideal for simple screening applications.

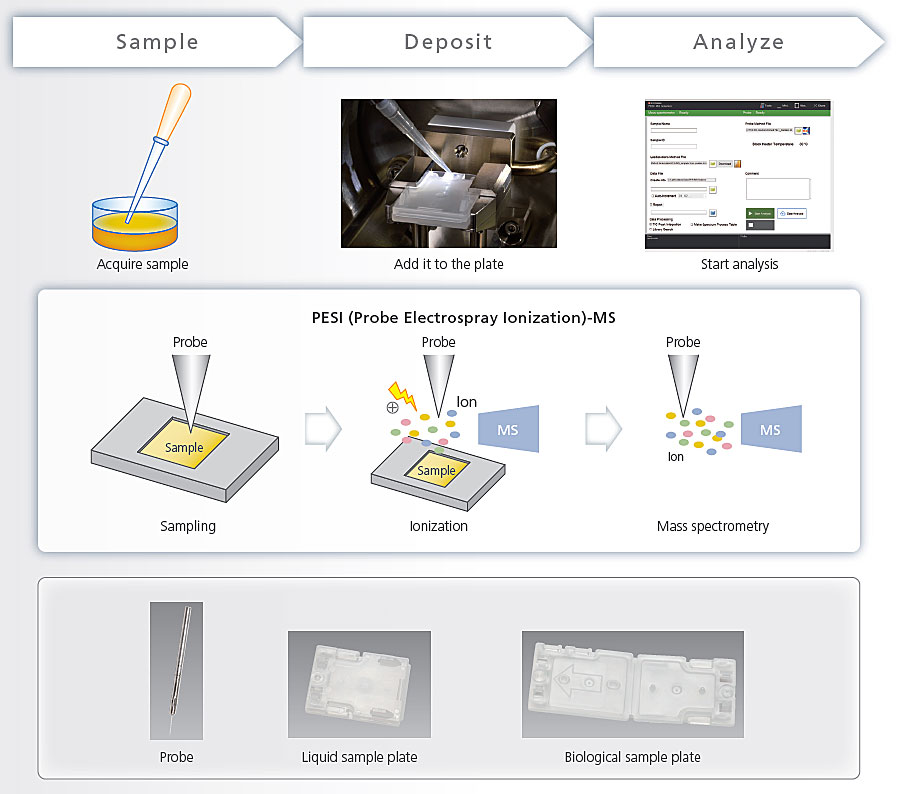

Simple Workflow
DPiMS™ Can Be Used in Diverse Fields
Features\Field | Chemical products/Synthesis | Biological/Food samples |
---|---|---|
Simple pretreatment |
![]() Measuring mixture ratio |
![]() Rapid screening |
Monitoring changes over time |
![]() Real-time tracking of |
![]() Oxidation reaction |
Measures a Wide Variety of Samples
- Body fluids, such as blood or urine
- Tissue sections, such as from laboratory animals or foods
- Plant materials, such as vegetables and fruits
Applicable for a Wide Variety of Objectives
- Detecting biological components
- Detecting materials for chemical products
- Detecting drugs, poisons, etc.
Features
-
Perform MS analysis directly on the sample.
Suitable for thermally labile compounds, no direct heat applied. -

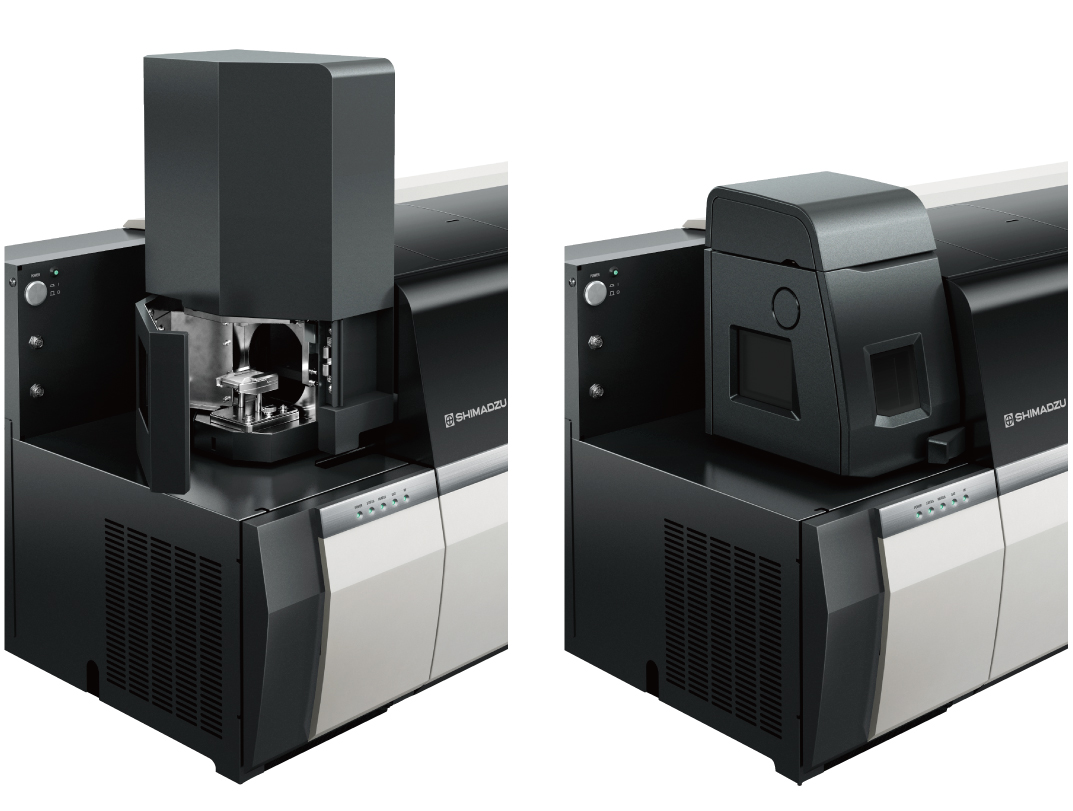

Switch Easily Between PESI-MS and LCMS
The PESI unit can be removed easily. The ability to exchange it with an LC unit means... -

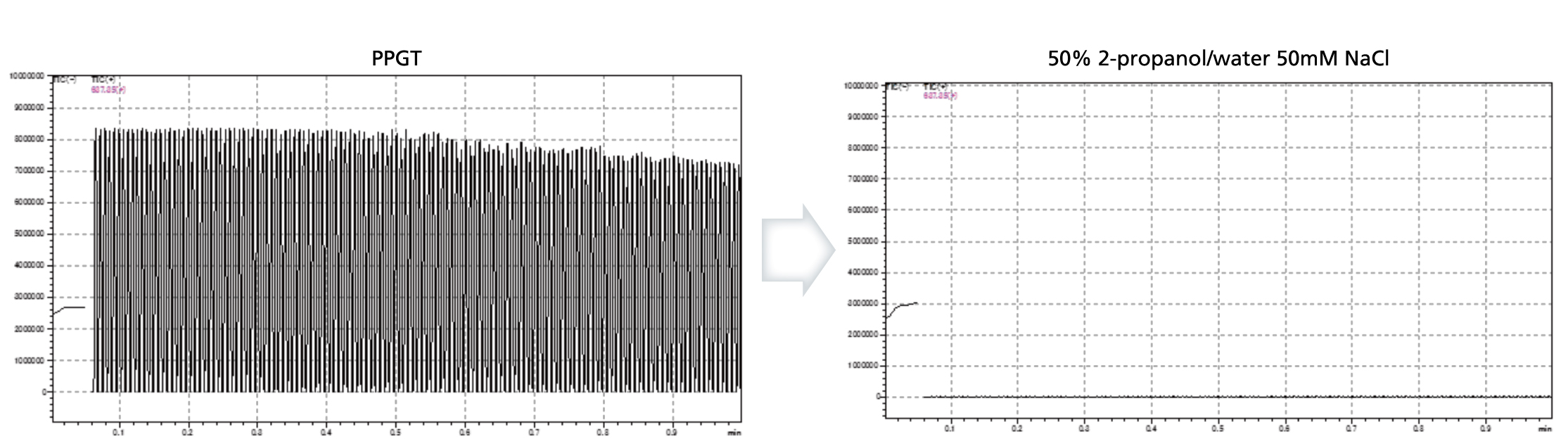

Analysis System with No Carryover
Only a tiny amount of sample attaches to the probe during each...
Downloads
Download the latest brochure.
Applications
Applications | Creation Date |
---|---|
2020-05-29 |
|
2020-05-29 |
|
2019-07-25 |
|
2019-07-08 |
|
2019-07-08 |
