DPiMS-2020

Probe Electrospray Ionization Mass Spectrometer

Direct Probe Ionization Mass Spectrometer

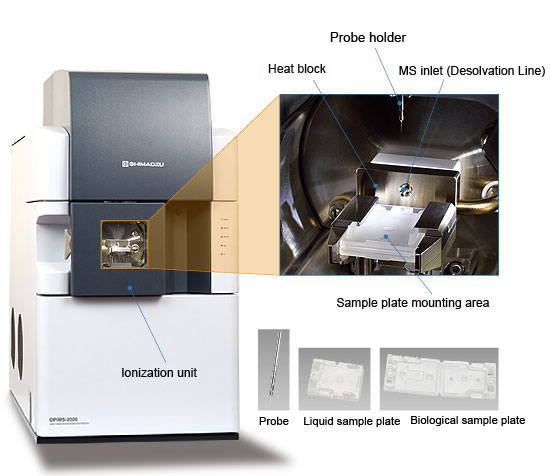

The DPiMS-2020 is a single quadrupole mass spectrometer based on using probe electrospray ionization. It uses a probe to remove a micro quantity of liquid from the sample placed on the sample plate and inject it into the MS unit for mass analysis.
It is extremely easy to operate and it is able to measure samples such as chemical products, food materials, and biological samples, directly or with very minimal sample pretreatment.

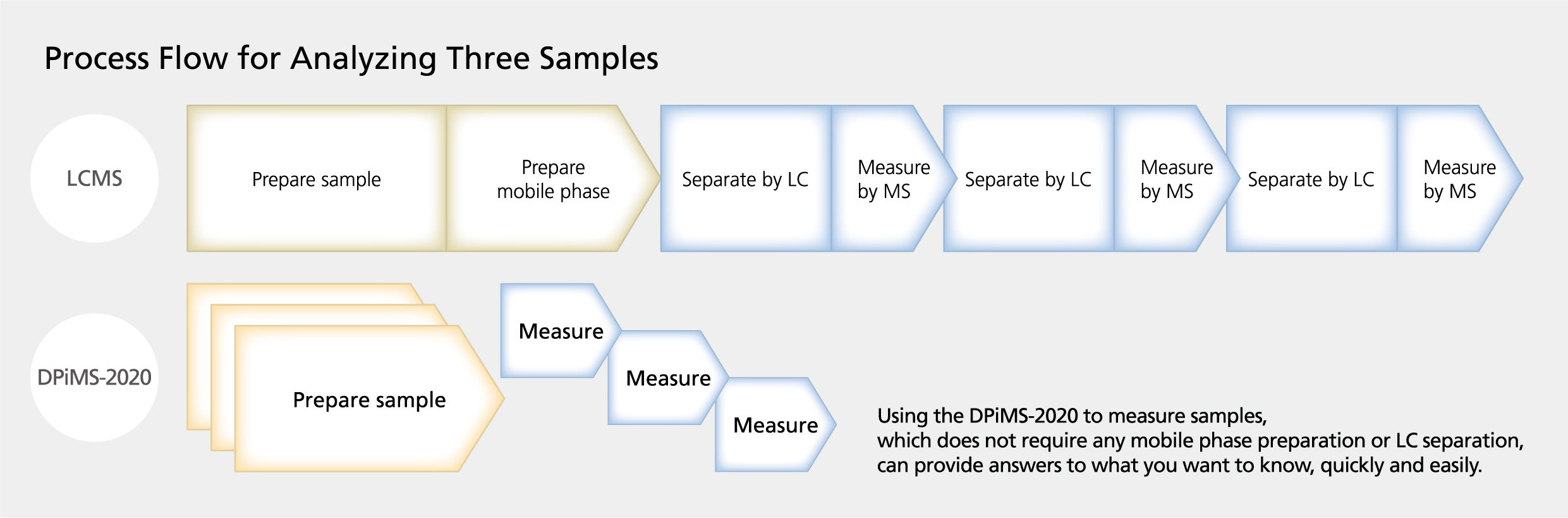

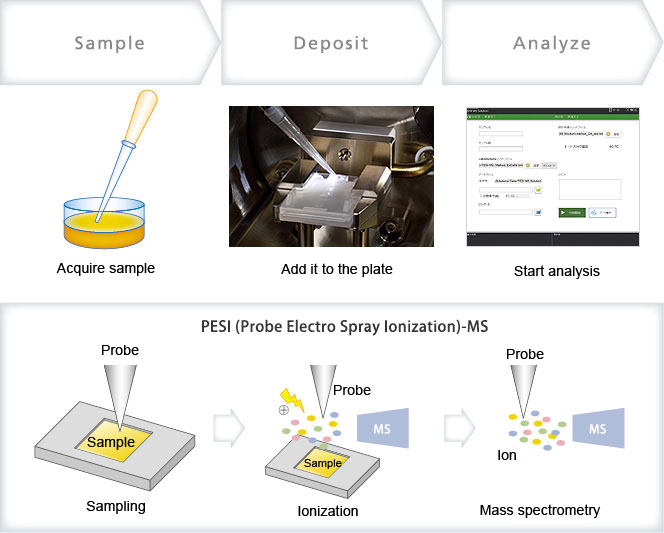

Simple Workflow

Applications

Features ＼ Field Chemical products/Synthesis Biological/Food samples
Simple
pretreatment

Measuring mixture ratio
of raw materials
Monitoring presence
of impurities

Rapid screening
directly on the
biomaterial sample
Monitoring
changes over time

Real-time tracking of
synthesis reactions

Oxidation reaction
and UV degradation
of supplements

Features

  • 59 - DPiMS-2020
    Perform MS analysis directly on the sample.
    Analysis of Components in Surfactant Mixtures
    An example of the screening of complex mixtures of cosmetics and personal care products in full-scan mode is shown below. Changes in spectral results indicate corresponding changes in composition. Samples can often be deposited directly onto the sample plate...
Learn more

Downloads

Download the latest brochure.

DPiMS-2020 - Direct Probe Ionization Mass Spectrometer [ PDF / 1.69MB ]

Applications

Applications Creation Date
DPiMS를 이용한 화학반응의 실시간 모니터링 [ PDF / 331.84KB ]

2020-04-30
Evaluation of Differentiated/Undifferentiated State of iPS Cells Using DPiMS™-2020 and eMSTAT Solution™ [ PDF / 699.34KB ]

2020-02-04
Solutions for Clinical Research [ PDF / 8.60MB ]

2018-03-23
Real-Time Monitoring of Chemical Reactions [ PDF / 914.24KB ]

2017-08-03
15 Second Screening Analysis of Cyanide in Blood Serum Without Pretreatment [ PDF / 506.93KB ]

2017-07-21
