UFRGA Series

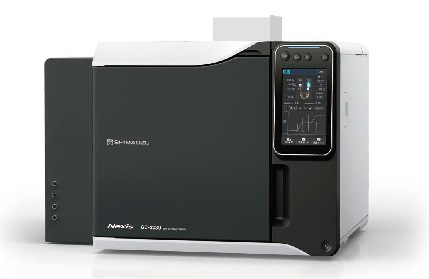

Nexis GC-2030 BIDUFRGA
The Ultrafast RGA system utilizes the new Barrier Discharge Ionization Detector (BID) technology coupled with Nexis GC-2030 to create new system GC for ultrafast, high-sensitivity analysis. Since the electrode creating Helium plasma is totally isolated from the carrier gas, there is no chance to contaminate this electrode with a dirty sample. This enables long-term stability.
Ultrafast Analysis
- UFRGA system completes a normal refinery gas analysis in 6 minutes.
- Stable Helium plasma achieves excellent peak repeatability performance.
- Intelligent flow controller AFC-2030 and advanced pressure controller (APC) provide excellent retention time repeatability.
- BID technology enables high-sensitivity analysis.
- Extended hydrocarbons such as C6 – C13 can be analyzed using an additional FID detector.

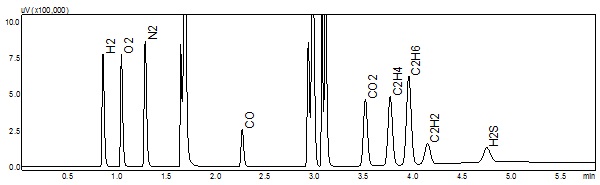

Chromatogram of BID

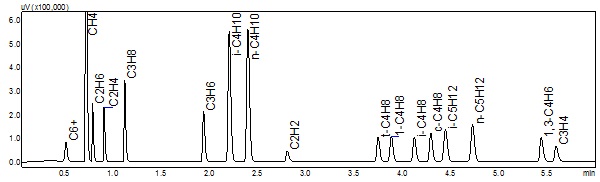

Chromatogram of FID

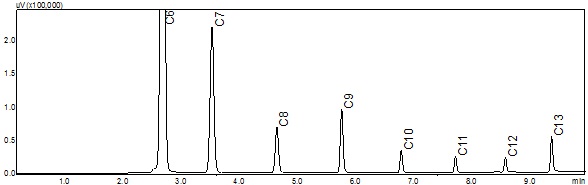

Heavy hydrocarbon system
- A dual-oven system can be configured for analysis of extended hydrocarbons such as C6 – C18.
Additional FID
Tracera UFRGA Series Lineup
| Model Name | Nexis GC-2030 BIDUFRGA | Nexis GC-2030 BIDERGA-S | Nexis GC-2030 BIDUFNGA |
| Type of Detector | BID, FID | BID, FIDx2 | BID, FID |
| Target compounds | H2, O2, N2, H2S, CO, CO2, C1-C5, C6+(backflush) | H2, O2, N2, H2S, CO, CO2, C1-C5, C6-C13 | Permanent gases, C1-C5, H2S, C6+(backflush) |
| Analysis Time | 16 minutes | 10 minutes | 5 minutes |
| Others | Simultaneously installed FID and BID realize trace amount analysis for both of permanent gases and hydrocarbons. | Single oven RGA system. Although this system is compact, the BID makes it possible to analyze permanent gases to C13 including H2S. | This system is configured for high speed natural gas analysis. Including H2S, Analysis is completed within 5 minutes. |
| Application Datasheet | Download | Download | Download |
