Application Note: "Analysis of Pharmaceuticals' Impurity - Regulations and Analysis for Carcinogenic Substances -"
Trace Sulfur Analysis

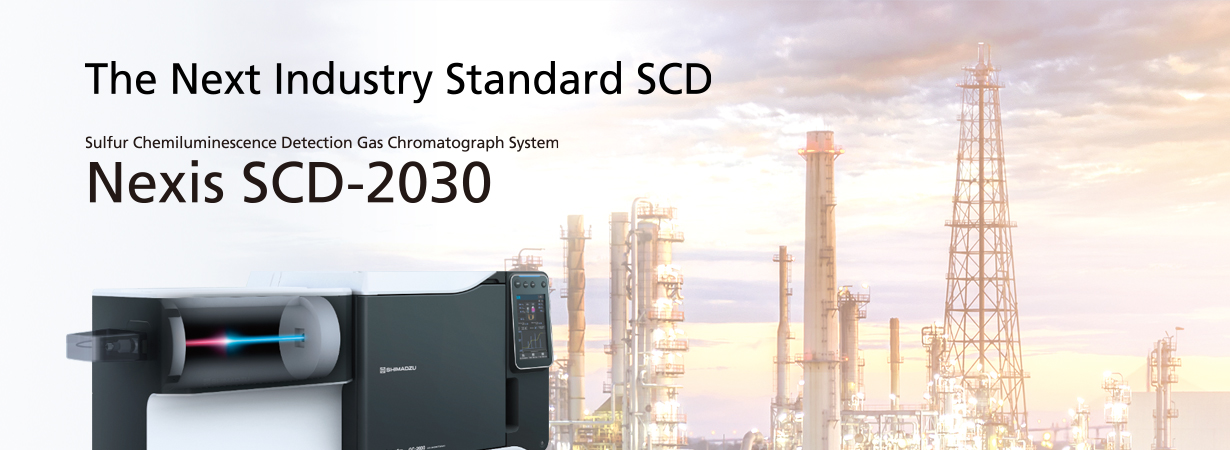

Some sulfur compounds are known to be not only hazardous but also catalytic poisons. ppb sulfur analysis is conducted by gas chromatography. The Nexis SCD-2030 is a next-generation sulfur chemiluminescence detection system. The dramatically enhanced sensitivity and reliability, the excellent maintainability, and the automation functions, a first for the industry, will improve laboratory productivity.
| Model Name | Nexis GC-2030SCD1 | Nexis GC-2030SCD2 | Nexis GC-2030PFPD1 | Nexis GC-2030PFPD2 | Nexis GC-2030PFPD3 |
| Reference Method | ASTM D5504 | ASTM D5623 | ASTM-D6228 | ASTM-D6228 | ASTM-D6228 |
| Type of Detector | SCD | SCD | PFPD | PFPD | PFPD |
| Target Compounds | Volatile sulfur compounds in Natural gas or similar gaseous mixture | Sulfur compounds in Motor gasoline fuel or similar light petroleum liquids | H2S, COS, SO2, mercaptans | H2S, COS, SO2, mercaptans | H2S, COS, SO2, mercaptans, aromatic sulfur compounds and sulfides |
| Others | High selectivity and linearity for sulfur containing compounds and minimizes the quenching effects of hydrocarbons | Very good linearity and repeatability for all sulfur compounds and excellent stability for the long-term analysis | High selectivity for sulfur Linear, simplifies calibration Designed for process gas and gaseous fuels. | High selectivity for sulfur Linear, simplifies calibration Designed for light petroleum liquids and gasoline | Two types of capillary columns realize higher separation performance. Designed for light petroleum liquids and gasoline |
| Application Datasheet | Download |
Download |
Download |
Download |
Download |
| Model Name | Nexis GC-2030FPD1 | Nexis GC-2030TIB | Nexis GC-2030SUL1 | Nexis GC-2030SUL2 |
| Reference Method | ASTM-D6228 | ASTM-D4735 | - | - |
| Type of Detector | FPD | PFPD | FPD | TCD |
| Target Compounds | H2S, COS, SO2, mercaptans, aromatic sulfur compounds and sulfides | Thiophene in benzene | H2S, COS | H2S, SO2 |
| Others | Micro-packed column can separate sulfide components and hydrocarbons effectively. | High selectivity for sulfur Linear, simplifies calibration Suitable method for thiophene in refined benzene | Designed for gaseous fuels Analysis time: 12 minutes One FPD channel | Two valves/ four packed columns Analysis of H2S and SO2 in C2, C3, and C4 |
| Application Datasheet | Download |
Download |
Download |
Download |
Applications
| Applications | Creation Date |
|---|---|
|
2024-02-07 |
|
|
2019-03-20 |
|
|
2019-03-20 |
|
|
2017-11-17 |
|
|
2017-11-17 |
