Impurity Analysis in Bulk Gas
High-purity gas is necessary in industries such as chemical, medical, and foods. Precisely controlled GC enables identification and quantitation of a trace amount of impurities in bulk gas. If the gas resources in a factory consist of multiple lines, a sample line selector SLS-2020 can be utilized to switch sample lines automatically, allowing a single GC to analyze all samples.
Analytical Example: Impurities in He
Impurities in He can be measured with a single analysis. This example shows an analysis with PDHID.
| Target compounds | Concentration |
| H2 | 100 ppb |
| O2 | 100 ppb |
| N2 | 100 ppb |
| CO | 100 ppb |
| CH4 | 100 ppb |
| CO2 | 100 ppb |

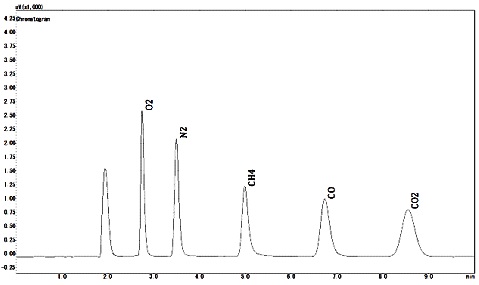

Chromatogram (Detector: PDHID)
GC-2014 system is also available for some applications.
