UP Series - Specs : SHIMADZU (Shimadzu Corporation)

UP223X

X Series with Internal Calibration Weights

Capacity	220g
Minimum display	0.001g
External Calibration Weight Range for Span Calibration	100 to 220g
Repeatability (at Weighing Capacity)	≦0.001g
Linearity	± 0.002g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 3.4 kg

*1 Indicated response time values are typical.

Show Less

UP423Y

Y Series without Internal Calibration Weights

Capacity	420g
Minimum display	0.001g
External Calibration Weight Range for Span Calibration	100 to 420g
Repeatability (at Weighing Capacity)	≦0.001g
Linearity	± 0.002g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 2.7 kg

Show Less

UP4201Y

Y Series without Internal Calibration Weights

Capacity	4200g
Minimum display	0.1g
External Calibration Weight Range for Span Calibration	1000 to 4200g
Repeatability (at Weighing Capacity)	≦0.08g
Linearity	± 0.1g
Response Time^*1	Approx. 0.6 to 1.0 sec
Sensitivity Stability Against Temperature Range	± 5 ppm/°C (10 to 30°C)
Pan Size	Approx. 170 x 180 mm
Weight	Approx. 2.9 kg

Show Less

UP822Y

Y Series without Internal Calibration Weights

Capacity	820g
Minimum display	0.01g
External Calibration Weight Range for Span Calibration	100 to 820g
Repeatability (at Weighing Capacity)	≦0.008g
Linearity	± 0.01g
Response Time^*1	Approx. 0.6 to 1.0 sec
Sensitivity Stability Against Temperature Range	± 5 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 2.7 kg

Show Less

UP422Y

Y Series without Internal Calibration Weights

Capacity	420g
Minimum display	0.01g
External Calibration Weight Range for Span Calibration	100 to 420g
Repeatability (at Weighing Capacity)	≦0.008g
Linearity	± 0.01g
Response Time^*1	Approx. 0.6 to 1.0 sec
Sensitivity Stability Against Temperature Range	± 5 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 2.7 kg

Show Less

UP6202Y

Y Series without Internal Calibration Weights

Capacity	6200g
Minimum display	0.01g
External Calibration Weight Range for Span Calibration	1000 to 6200g
Repeatability (at Weighing Capacity)	≦0.01g
Linearity	± 0.02g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 170 x 180 mm
Weight	Approx. 2.9 kg

Show Less

UP4202Y

Y Series without Internal Calibration Weights

Capacity	4200g
Minimum display	0.01g
External Calibration Weight Range for Span Calibration	1000 to 4200g
Repeatability (at Weighing Capacity)	≦0.01g
Linearity	± 0.02g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 170 x 180 mm
Weight	Approx. 2.9 kg

Show Less

UP2202Y

Y Series without Internal Calibration Weights

Capacity	2200g
Minimum display	0.01g
External Calibration Weight Range for Span Calibration	1000 to 2200g
Repeatability (at Weighing Capacity)	≦0.01g
Linearity	± 0.02g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 170 x 180 mm
Weight	Approx. 2.9 kg

Show Less

UP1023Y

Y Series without Internal Calibration Weights

Capacity	1020g
Minimum display	0.001g
External Calibration Weight Range for Span Calibration	500 to 1020g
Repeatability (at Weighing Capacity)	≦0.001g
Linearity	± 0.003g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 2.7 kg

Show Less

UP823Y

Y Series without Internal Calibration Weights

Capacity	820g
Minimum display	0.001g
External Calibration Weight Range for Span Calibration	400 to 820g
Repeatability (at Weighing Capacity)	≦0.001g
Linearity	± 0.003g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 2.7 kg

Show Less

UP623Y

Y Series without Internal Calibration Weights

Capacity	620g
Minimum display	0.001g
External Calibration Weight Range for Span Calibration	100 to 620g
Repeatability (at Weighing Capacity)	≦0.001g
Linearity	± 0.002g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 2.7 kg

Show Less

UP223Y

Y Series without Internal Calibration Weights

Capacity	220g
Minimum display	0.001g
External Calibration Weight Range for Span Calibration	100 to 220g
Repeatability (at Weighing Capacity)	≦0.001g
Linearity	± 0.002g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 2.7 kg

Show Less

UP423X

X Series with Internal Calibration Weights

Capacity	420g
Minimum display	0.001g
External Calibration Weight Range for Span Calibration	100 to 420g
Repeatability (at Weighing Capacity)	≦0.001g
Linearity	± 0.002g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 3.4 kg

Show Less

UP8201X

X Series with Internal Calibration Weights

Capacity	8200g
Minimum display	0.1g
External Calibration Weight Range for Span Calibration	1000 to 8200g
Repeatability (at Weighing Capacity)	≦0.08g
Linearity	± 0.1g
Response Time^*1	Approx. 0.6 to 1.0 sec
Sensitivity Stability Against Temperature Range	± 5 ppm/°C (10 to 30°C)
Pan Size	Approx. 170 x 180 mm
Weight	Approx. 4.6 kg

Show Less

UP4201X

X Series with Internal Calibration Weights

Capacity	4200g
Minimum display	0.1g
External Calibration Weight Range for Span Calibration	1000 to 4200g
Repeatability (at Weighing Capacity)	≦0.08g
Linearity	± 0.1g
Response Time^*1	Approx. 0.6 to 1.0 sec
Sensitivity Stability Against Temperature Range	± 5 ppm/°C (10 to 30°C)
Pan Size	Approx. 170 x 180 mm
Weight	Approx. 4.6 kg

Show Less

UP822X

X Series with Internal Calibration Weights

Capacity	820g
Minimum display	0.01g
External Calibration Weight Range for Span Calibration	100 to 820g
Repeatability (at Weighing Capacity)	≦0.008g
Linearity	± 0.01g
Response Time^*1	Approx. 0.6 to 1.0 sec
Sensitivity Stability Against Temperature Range	± 5 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 3.4 kg

Show Less

UP422X

X Series with Internal Calibration Weights

Capacity	420g
Minimum display	0.01g
External Calibration Weight Range for Span Calibration	100 to 420g
Repeatability (at Weighing Capacity)	≦0.008g
Linearity	± 0.01g
Response Time^*1	Approx. 0.6 to 1.0 sec
Sensitivity Stability Against Temperature Range	± 5 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 3.4 kg

Show Less

UP6202X

X Series with Internal Calibration Weights

Capacity	6200g
Minimum display	0.01g
External Calibration Weight Range for Span Calibration	1000 to 6200g
Repeatability (at Weighing Capacity)	≦0.01g
Linearity	± 0.02g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 170 x 180 mm
Weight	Approx. 4.6 kg

Show Less

UP4202X

X Series with Internal Calibration Weights

Capacity	4200g
Minimum display	0.01g
External Calibration Weight Range for Span Calibration	1000 to 4200g
Repeatability (at Weighing Capacity)	≦0.01g
Linearity	± 0.02g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 170 x 180 mm
Weight	Approx. 4.6 kg

Show Less

UP2202X

X Series with Internal Calibration Weights

Capacity	2200g
Minimum display	0.01g
External Calibration Weight Range for Span Calibration	1000 to 2200g
Repeatability (at Weighing Capacity)	≦0.01g
Linearity	± 0.02g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 170 x 180 mm
Weight	Approx. 4.6 kg

Show Less

UP1023X

X Series with Internal Calibration Weights

Capacity	1020g
Minimum display	0.001g
External Calibration Weight Range for Span Calibration	500 to 1020g
Repeatability (at Weighing Capacity)	≦0.001g
Linearity	± 0.003g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 3.4 kg

Show Less

UP823X

X Series with Internal Calibration Weights

Capacity	820g
Minimum display	0.001g
External Calibration Weight Range for Span Calibration	400 to 820g
Repeatability (at Weighing Capacity)	≦0.001g
Linearity	± 0.003g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 3.4 kg

Show Less

UP623X

X Series with Internal Calibration Weights

Capacity	620g
Minimum display	0.001g
External Calibration Weight Range for Span Calibration	100 to 620g
Repeatability (at Weighing Capacity)	≦0.001g
Linearity	± 0.002g
Response Time^*1	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	± 3 ppm/°C (10 to 30°C)
Pan Size	Approx. 108 x 105 mm
Weight	Approx. 3.4 kg

Show Less

UP8201Y

Y Series without Internal Calibration Weights

Capacity	8200g
Minimum display	0.1g
External Calibration Weight Range for Span Calibration	1000 to 8200g
Repeatability (at Weighing Capacity)	≦0.08g
Linearity	± 0.1g
Response Time^*1	Approx. 0.6 to 1.0 sec
Sensitivity Stability Against Temperature Range	± 5 ppm/°C (10 to 30°C)
Pan Size	Approx. 170 x 180 mm
Weight	Approx. 2.9 kg

Show Less

External Dimensions

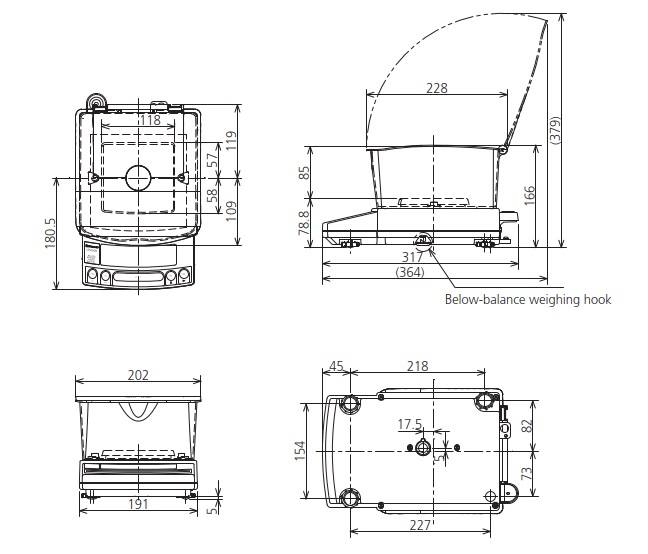

Small Pan Models with Weighing Capacity 1,020 g or less

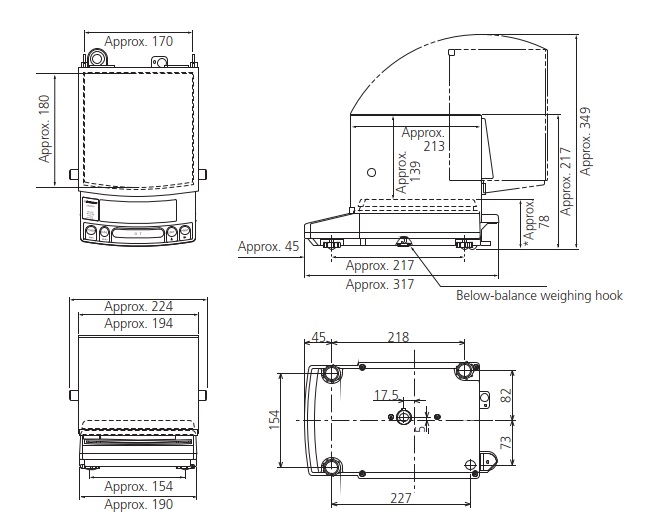

Large Pan Models with Weighing Capacity 2,200 g or more

(shown with large windbreak [optional accessory, sold separately] installed)
Weight UP X series: Approx. 4.6 kg　UP Y series: Approx. 2.9 kg
* Approx. 78 mm for models with 0.1 g minimum display value
Approx. 81 mm for models with 0.01 g minimum display value

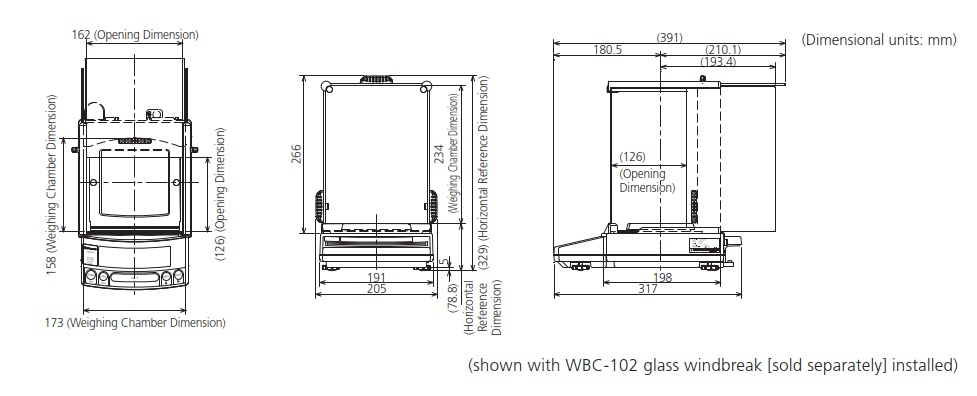

Small Pan Models with Weighing Capacity 1,020 g or less

(shown with the standard windbreak set installed on a model with 0.001 g minimum display value)
Weight UP X series: Approx. 3.4 kg UP Y series: Approx. 2.7 kg
