Septum
Last update: January 26, 2021
| P/N | Appearance | Qty | Remarks | Applicable model Links | Applicable models |
|---|---|---|---|---|---|
|
221-76650-01
|
|
25 | Thermogreen LB-2, green, low bleed, least amount of plasticizing agent |
TQ8040 TQ8050 TQ8030 QP2020 QP2010 Ultra QP2010 SE QP2010 QP2010 Plus PARUM2 2025 2030 2014 2010 plus |
|
|

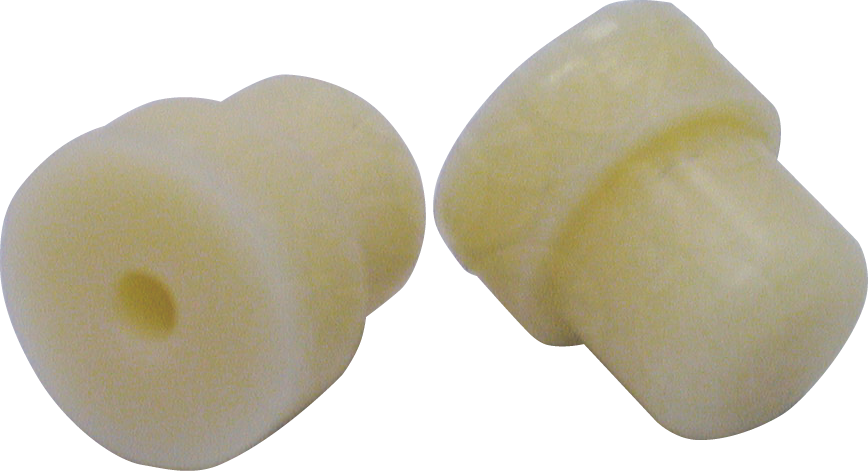

201-35584
|
|
20 | Silicone rubber, white, injection unit temperature: lower than 250℃ |
TQ8040 TQ8050 TQ8030 QP2020 QP2010 Ultra QP2010 SE QP2010 QP2010 Plus PARUM2 2025 2030 2014 2010 plus |
|
|
201-35584-84
|
|
200 | Silicone rubber, white, injection unit temperature: lower than 250℃ |
TQ8040 TQ8050 TQ8030 QP2020 QP2010 Ultra QP2010 SE QP2010 QP2010 Plus PARUM2 2025 2030 2014 2010 plus |
|
|

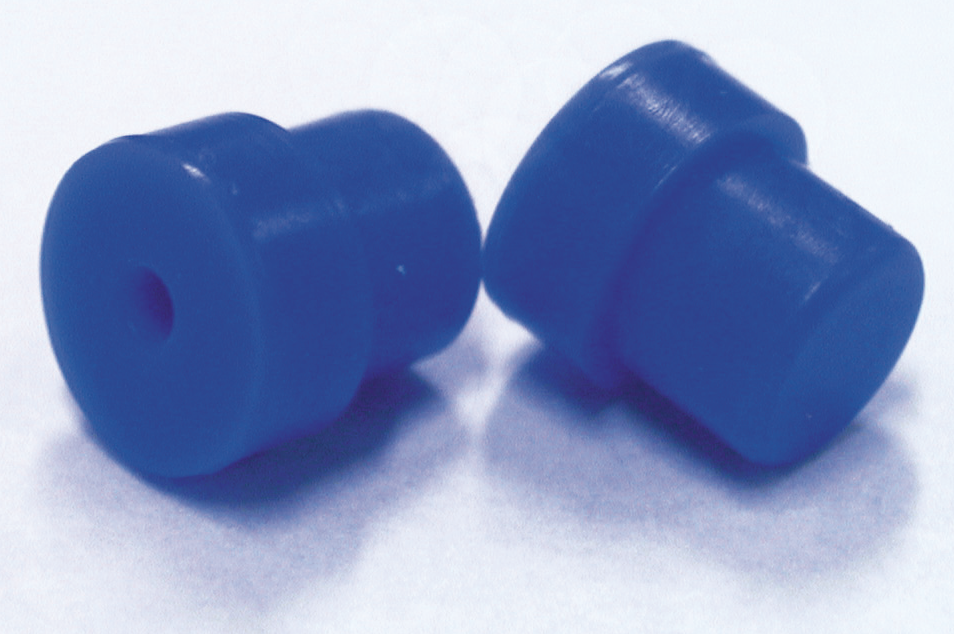

221-48972-91
|
|
20 | Long-life (LL), blue, low bleed, 450℃ max. |
TQ8040 TQ8050 TQ8030 QP2020 QP2010 Ultra QP2010 SE QP2010 QP2010 Plus PARUM2 2025 2030 2014 2010 plus |
|
|

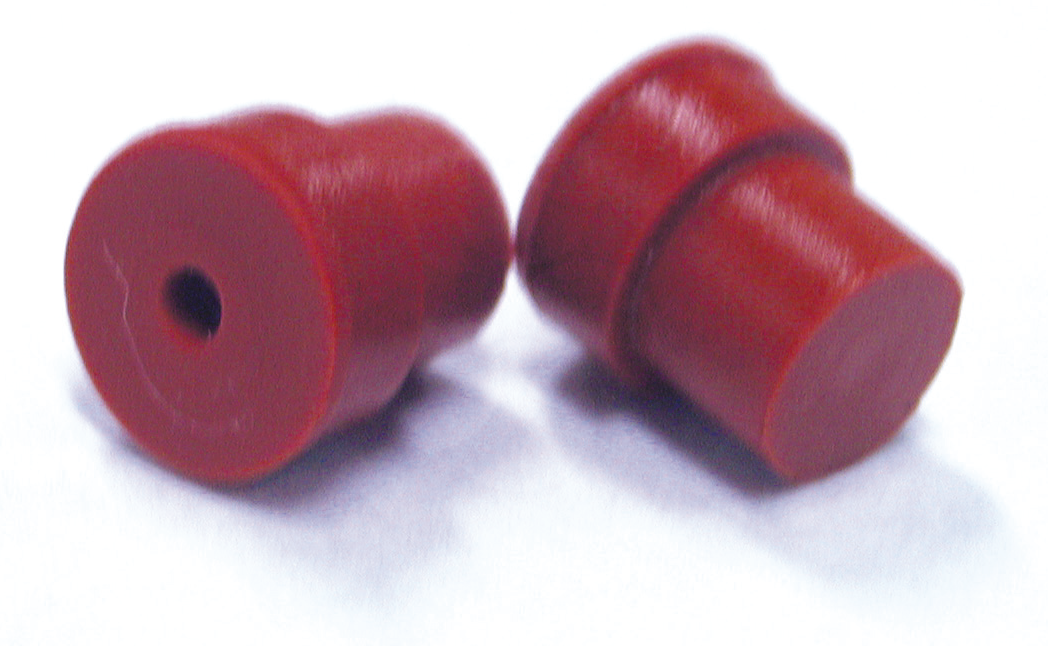

221-48398-91
|
|
20 | For HT high temperature, brown, low bleed, 450℃ max., low bleed under a high temperature and highly durable |
TQ8040 TQ8050 TQ8030 QP2020 QP2010 Ultra QP2010 SE QP2010 QP2010 Plus PARUM2 2025 2030 2014 2010 plus |
Note: The conditioned septum (P/N: 225-10164-93) is not currently available. Please use 221-35507-01.
Guide to select an injection port septum
Even when a low bleed septum is used, bleeding is not totally eliminated. The type of bleeding differs according to the septum type and bleeding appears as different peaks on a chromatogram. In high-sensitivity analysis, you need to select and use a septum that does not cause bleeding at a position where interference occurs with the target compound.
Use the information below as a guide.
| Injection unit temperature is high (250 to 450℃). | Low bleed (high-sensitivity analysis) | Septum for HT high temperature |
|---|---|---|
| Low bleed septum is not required. | Long-life septum | |
| Injection unit temperature is lower than 250℃. | Low bleed (high-sensitivity analysis) septum is required and durability is also important. | Long-life septum |
| Small amount of plasticizing agent regardless of the injection unit temperature | Thermogreen LB-2 septum | |
