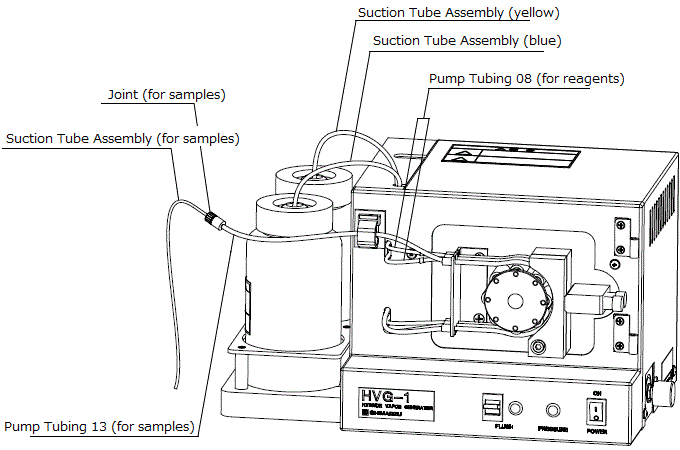

Hydride Vapor Generator Parts
Name | P/N | Appearance | Qty | Remarks |
---|---|---|---|---|
Absorption Cell |
206-77607
|
![]() |
1 | |
Joint, for Reagents |
206-17826-01
|
![]() |
1 | Has a different inner diameter, etc. from the joint for samples. |
Joint, for Samples |
206-17826-02
|
![]() |
1 | Has a different inner diameter, etc. from the joint for reagents. |
Pump Tubing 08, for Reagents |
208-90038-08
|
![]() |
12 | Orange bridge on the tube |
Pump Tubing 13, for Samples |
208-90038-13
|
![]() |
12 | Blue bridge on the tube |
Reaction Coil Assembly |
206-18037
|
![]() |
1 | |
Suction Tube Assembly, Blue |
206-18036-02
|
![]() |
1 | For HCl, partially blue coating on the tube |
Suction Tube Assembly, Yellow |
206-18036-01
|
![]() |
1 | For NaBH4, partial yellow coating on the tube |
Suction Tube Assembly, for Samples |
206-18036-03
|
![]() |
1 |
Autosampler Parts
Name | P/N | Qty | Remarks | Applicable models |
---|---|---|---|---|
Nozzle Assembly, F |
206-50290-91
|
1 | For flame |
ASC-7000 ASK-7000 ASC-6100 ASK-6100 |
Nozzle Assembly, G |
206-50298-91
|
1 | For flame single drop/furnace method |
ASC-7000 ASK-7000 ASC-6100 ASK-6100 |
Nozzle Assembly, HVG |
206-67563
|
1 | A nozzle used when ASC-6100 and HVG-1 are interlocked |
ASC-7000 ASK-7000 ASC-6100 ASK-6100 |
Peristaltic Pump Tube |
042-00405-24
|
1 | For flame single drop/furnace method |
ASC-7000 ASK-7000 ASC-6100 ASK-6100 |
Pipette Tip |
046-00308-02
|
1 | For flame single drop/furnace method |
ASC-7000 ASK-7000 ASC-6100 ASK-6100 |
Tube Assembly, Pipette |
206-50401-92
|
1 | For flame single drop/furnace method. A commercially-available 200 ml pipette tip can be used on the tip of the nozzle. |
ASC-7000 ASK-7000 |
Tube Assembly, Pipette |
206-50401-91
|
1 | For flame single drop/furnace method. A commercially-available 200 ml pipette tip can be used on the tip of the nozzle. |
ASC-6100 ASK-6100 |
